4-Post Free Standing Open Rack
 TP-Series 19-inch Rack Mount Rack
OR-TP2202B-xxU or TP2203B-xxU
4-Post Free Standing Open Rack
TP-Series 19-inch Rack Mount Rack

Product Options:

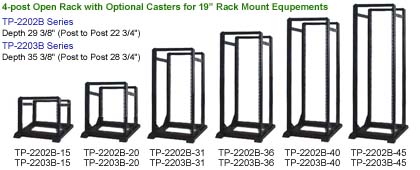

a. TP-2202B Series Post-to-Post: 20 1/8"(W) x 22 3/4"(D); Base: 22 1/8"(W) x 29 3/8"(D)
      1. TP-2202B-15 (15U) Height 30.75"
      2. TP-2202B-20 (20U) Height 39.50"
      3. TP-2202B-31 (31U) Height 58.75"
      4. TP-2202B-36 (36U) Height 67.50"
      5. TP-2202B-40 (40U) Height 74.50"
      6. TP-2202B-45 (45U) Height 83.25"
 b. TP-2203B Series Post-to-Post: 20 1/8"(W) x 28 3/4"(D); Base: 22 1/8"(W) x 35 3/8"(D)
      7. TP-2203B-15 (15U) Height 30.75"
      8. TP-2203B-20 (20U) Height 39.50"
      9. TP-2203B-31 (31U) Height 58.75"
    10. TP-2203B-36 (36U) Height 67.50"
    11. TP-2203B-40 (40U) Height 74.50"
    12. TP-2203B-45 (45U) Height 83.25"
** Click here for Weight & Packaging Information **

 Key Features:
> Supports 19” rack-mount equipment designed for four-post or two-post mounting.
> EIA-310-D-Standard hole pattern.
> Quick attachment of equipment with threaded equipment mounting holes and included equipment mounting screws.
> Sheet Steel for high load capacity.

Applications:
> Use Standard Rack with vertical and horizontal cable managers to support interconnect and network equipment in telecommunications rooms, equipment rooms and data centers.
> Use with shelves to support other equipment.
> Accessories:
   50 pcs M6 bolt screws with washers
   50 pcs M5 self-tapping screws
   50 pcs M6 square nuts
