Rocker Power Switch

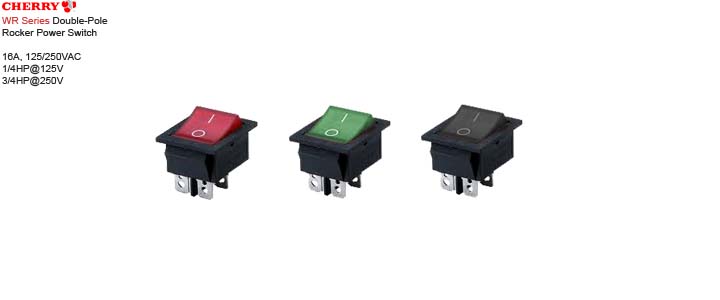

WR Series Double-Pole Rocker Power Switch
16A, 125/250VAC, 1/4HP@125V, 3/4HP@250V
PSW-Rio-xxx

Features:

  • Rugged constructionfor2-pole, high-current applications

  • Lighted and non-lighted

  • Maintained-action and momentary

  • Single-throw and double-throw

  • Available in a variety of colors

  • Mechanicallife:min.50,000operations

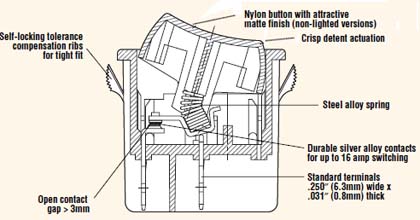

Construction:

Electrical Ratings:

  • Switch Series: WR

  • EN61508 Rating:
    16(4)A, 250V~, T125 1E4
  • UL1054 Rating:
    16A, 125/250VAC; 1/4HP@125V, 3/4HP@250V
  • Electrical Life at Rated Load
    • According to VDE:
      10,000 Min. Operations
    • According to UL:
      6,000 Min. Operations

Specification:

  • Electrical

    • Dielectric Strength: 1000VAC for 1 minute

    • Insulation Resistance: 108 ohms min at 500VDC

    • Initial Contact Resistance: 0.020 ohms max

    • Temperature Rating: -20°C to +65°C

  • Materials

    • Actuator (non-lighted): Nylon 66 94V-2

    • Actuator (lighted): Polycarbonate

    • Case: Nylon 66 94V-2

    • Spring: Steel Wire

    • Contacts: Silver Alloy

    • Movable Arm: Silver-Plated Copper Alloy

    • Terminals: Tin-Plated Copper Alloy

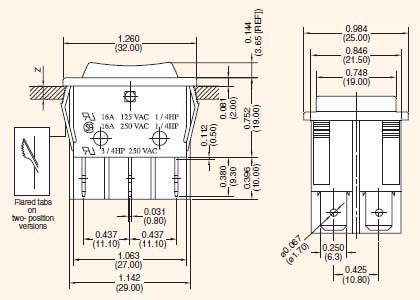

Dimension:

Recommended Panel Cut-Out Dimensions:

Panel Thickness Length ( X ) Width ( Y )
0.030 ~ 0.049 inch
( 0.75 ~ 1.25 mm)		 1.180 inch
( 30.00 mm )		 0.867 inch
( 22.02 mm )
0.049 ~ 0.079 inch
( 1.25 ~ 2.00 mm )		 1.190 inch
( 30.25 mm )		 0.867 inch
( 22.02 mm )
0.079 ~ 0.118 inch
( 2.00 ~ 3.00 mm )		 1.200 inch
( 30.48 mm )		 0.867 inch
( 22.02 mm )

Options and Descriptions:

Options and Ordering Information:
  • Circuitry
    • Single-Pole
    • Double-Pole
  • Switch Function
    • On - Off
    • On - On
    • On - Off - On
    • (On) - Off
    • (On) - On
    • (On) - Off - (On)
    • (On) - Off - On
  • Terminal Type
    • 0.187 inch ( 4.8 mm ) QC
    • 0.250 inch ( 6.3 mm ) QC
    • 0.250 inch ( 6.3 mm ) M3 Tapped Screw
    • 0.250 inch ( 6.3 mm ) Solder Tag
  • Actuator Type
    • Curve
    • Flat Actuator
    • Cure - Dual Actuator
  • Actuator Marking
    • LO HI
    • OFF ON
    • O I
    • O -
    • I O II
  • Housing Color
    • Charcoal Gray
    • Gray
    • Black
    • White
    • Brown
  • Actuator Color
    • Gray
    • Black
    • Green
    • Amber
    • Red
    • White
    • Brown
    • Charcoal Gray
  • Lighted
    • Non-Lighted
    • Lighted ( Bulb 125VAC )
    • Lighted ( Bulb 250VAC )
    • Lighted 5VDC Incandescent
    • Lighted 6VDC Incandescent
    • Lighted 12VDC Incandescent
  • Splash Proof
    • No Rocker Boot
    • Rocker Boot
      •
