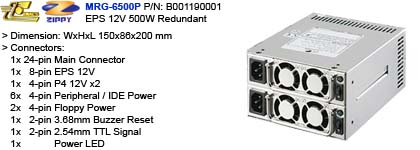

Redundant EPS 12V 500W Power Supply
 Emacs / Zippy MRG-6500P (P/N: B001190001)
 PS-R2-ZP-MRG-6500P

Down Load:

Dimension: (WxDxH)

  • 150 x 86 x 200 mm
  • 5.91 x 3.39 x 7.87 inch
  • 5-29/32 x 3-3/8 x 7-7/8 inch

Connectors:

  • 1x 24-pin Main Connector
  • 1x   8-pin EPS 12V
  • 1x   4-pin P4 12V
  • 6x   4-pin Peripheral / IDE Power
  • 2x   4-pin Floppy Power
  • 1x   2-pin 3.68mm Buzzer Reset
  • 1x   2-pin 2.54mm TTL Signal
  • 1x            Power LED

Features:

  • Active PFC (full range), Meet IEC-1000-3-2 Class D
  • 12V Max. Current : 32A
  • Temperature Range:
    Operating 0°C ~ 40°C
    Storage: -20°C ~ 80°C
  • Humidity:
    Operating: 20%-80%
    Non-Operating: 10%-90%
  • Remarks: 85% is Normal Condition and 95% is with Special Coating Process
  • EMI: FCC Class B, CISPR22 Class B
  • Safety: to meet UL, CSA, TUV IEC
  • Hot-Swappable / Hot-Pluggable Redundancy Function
  • Cooling: 2x 40mm DC Fans (Module)
  • AC Inlet in each Module
  • Serial ATA optional


Specification:

  • Output Wattage: 500W
  • Best Solution for: Server, Workstation, Storage System, IPC

  • Dimension: (WxDxH)
    150 x 86 x 200 mm
    5.    91 x 3.39 x 7.87 inch
    5-29/32 x 3-3/8 x 7-7/8 inch

  • Voltage: 90~264 VAC Full Range
  • Output Characteristics:
    Output
    Voltage    		 Min. Output
    Current    		 Max. Output
    Current    		 Peak Output
    Current    		 Regulation
    Load    		 Regulation
    Line    		 Output Ripple &
    Noise Max. [P-P]
    +5V 3 35.00 --- ±5% ±1% 50mV
    +12V 2 32 --- ±5% ±1% 120mV
    -5V 0.05 0.8 --- ±10% ±1% 150mV
    -12V 0.05 1 --- ±10% ±1% 150mV
    3.3V 1 25 --- ±5% ±1% 50mV
    +5VSB 0.1 2.5 --- ±5% ±1% 60mV

    Remarks:
    > Total Current of +5V & + 3.3V not exceed 45A
    > +3.3V & 12V should not exceed 50A
    > Total Maximum Output of 5V, 3.3V and 12V : 472W

* The power supply is for chassis assembly only and is not allowed to be operated as stand-alone component. Final assembly has to comply with corresponding EMC and safety regulations.
