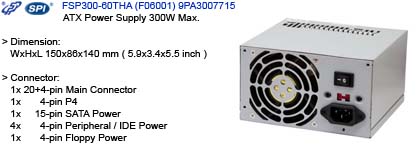

ATX 12V Power Supply
FSP / SPI FSP300-60THA (F06001)
PS-ATX204-300-60THA

Links:

Dimension:

  • WxHxD: 150 x 86 x 140 mm
  • WxHxD: 5.9 x 3.4 x 5.5 inch
  • WxHxD: 5-7/8 x 3-3/8 x 5-1/2 inch

Connectors:

  • 1x 20+4-pin Main Connector
  • 1x       4-pin P4
  • 1x     15-pin SATA Power
  • 4x       4-pin Peripheral / IDE Power
  • 1x       4-pin Floppy Power

Description:

This 300-WATT, ATX 12V v2.01 PC POWER SUPPLY UNIT is designed according to Intel and AMD power specifications.  It features 80mm high-speed cooling fan with thermal sensing technology & noise killer, supports Serial ATA power, and delivers high-performance power conversion ratio.  It is an excellent choice of value and performance for power upgrade or replacement.  FSP Quality Assurance Program, a manufacturer’s direct service guarantees quality and performance for a period of 2-Year, included.  All FSP OEM models are qualified for RoHS, Lead-Free, Green Product (G.P) global environmental friendly status.

Features:

  • SUPPORTS MULTI-CORE AMD/INTEL CPU SYSTEM
  • 300-WATT ATX 12V v2.01 for PC
  • 80mm HIGH-SPEED COOLING FAN SYSTEM WITH NOISE KILLER
  • THERMAL CONTROL SYSTEM LINKED TO FAN
  • SECURE ON/OFF POWER SWITCH
  • ENERGY SAVER | 1-WATT STANDBY MODE
  • HIGH POWER CONVERSION EFFICIENCY
  • SUPPORTS SERIAL-ATA POWER OUTPUT

General Specification:

  • COOLING Fan(s): Single, 80mm Ball-bearing with Thermal Sensor Linked & Noise Killer
  • TOTAL OUTPUT POWER: 300-WATT TOTAL CONTINUOUS OUTPUT @ 30°C
  • OUTPUT CONNECTORS: Main 20+4Pin, P4 4-Pin, (4) Molex 4-Pin, (1) FDD, (1) Serial-ATA,
  • NVIDIA SLI SUPPORT N/A
  • AMD/ATI CROSSFIRE SUPPORT: N/A
  • 80PLUS CERTIFIED: N/A
  • MODULAR CABLE: N/A
  • SAFETY APPROVAL: UL, IEC, TUV, NEMKO, CB
  • MBTF: 100,000 HOURS @ TYPICAL

Input Characteristics:

  • Input Voltage: 115/230V AC, 60/50Hz
  • Power Factor Correction (PFC): N/A
  • Input Current: 7.0A @ 115 Vrms, 60 Hz., 3.5A @ 230 Vrms, 50 Hz.
  • Input Protection: Patented Input Fuse Protection

Output Characteristics:

Output Voltage Minimum Load Normal Load Maximum Load Load Reg. Line Reg. Ripple Noise
+3.3V 0.5A 10.0A 20.0A ± 5% ± 1% 50mV P-P
+5V 1.0A 10.0A 20.0A ± 5% ± 1% 50mV P-P
+12V1DC 1.0A 4.0A 8.0A ± 5% ± 1% 120mV P-P
+12V2DC 1.0A 7.0A 14.0A ± 5% ± 1% 120mV P-P
-12V 0.0A 0.4A 0.8A ± 10% ± 2% 120mV P-P
+5Vsb 0.0A 1.0A 2.0A ± 5% ± 1% 50mV P-P
  • +3.3V & +5V total output not exceed 120W
    When +3.3V is load to 20A, the +5V maximum load is 10.8A
    When +3.3V is load to 6.0A, the +5V maximum load is 20A

  • +3.3V & +5V & +12V1DC & +12V2DC total output not exceed 280W

  • All outputs shall be safety-isolated from the AC mains and share a common return. This common return must be connected to supply chassis.

  • Voltage and ripple are measured at the load side of mating connectors with a 0.1uf monolithic ceramic capacitor paralleled by a 10 uF electrolytic capacitor across the measuring terminals.
