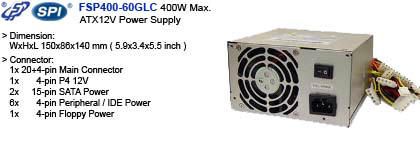

ATX 12V Power Supply
FSP / SPI FSP400-60GLC, FSP400-60GLCR
FSP / SPI FSP400GLCR-B204 (P/N: 9PA4001701)
 PS-ATX204-400-GLCR

Links:

Connectors:

  • 1x 20+4-pin Main Connector
  • 1x      4-pin P4 12V
  • 2x    15-pin SATA Power
  • 6x      4-pin Peripheral / IDE Power
  • 1x      4-pin Floppy Power

Dimension: (WxHxD)

  • 150 x 86 x 140 mm
  • 5.9 x 3.4 x 5.5 inch
  • 5-29/32 x 3-3/8 x 5-1/2 inch

Features:

  • Complied with ATX and ATX12V standard

  • Active Power factor correction (PFC) meet EN61000-3-2

  • High efficiency and reliability

  • Remote On/Off function

  • Internal 12V DC fan included

  • Noise Killer (Thermal fan speed control function)

  • Low noise and ripple

  • Complies with FCC part 15 subpart J class B and CISPR 22 Class B

  • Output over voltage, short circuit, and over current protection

  • 100% Hi-pot, ATE, and burn-in tested

  • Re-settable power shut down

  • Approved by UL60950, CSA C22.2, TUV or VDE, NEMKO (CB Report), IEC 60950 and CE

Specification:

  • Temperature Range: Operating 0° C ~ +50° C on full load; storage & shipping -20° C ~ +80° C

  • Humidity: 5~95% on operating and storage

  • Dielectric Withstand: Primary to frame ground 1800V AC for 1 second

  • Efficiency: min 80% at 230VAC & 75% at 115VAC main voltage and frequency with maximum load on all output

  • Rise Time: Less than 20ms

  • Hold-up Time: 17ms minimum at nominal input voltage

  • Power Good Signal: Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible)

  • Leakage Current: Less than 3.5mA at 115V AC/60Hz

  • MTBF: 100,000 hours on maximum load at +25° C degree

  • Dimension (WxHxL): 150x86x140mm/5.9”x3.4”x5.5” inches

    •

Input Characteristics:

  • Input Range: 90~265V AC, Full Input Range

  • Frequency: 47~63Hz

  • Input Current: 5A (RMS) @115V AC, 2.5A (RMS) @230VAC

  • Inrush Current: No damage, typical 100A Max at cold start

Output Characteristics:

Output Voltage Minimum Load Normal Load Maximum Load Load Reg. Line Reg. Ripple & Noise
+3.3V 0.5A 15A 30A ± 5% ± 1% 50mV P-P
+5V 0.3A 15A 30A ± 5% ± 1% 50mV P-P
+12V1DC 1.0A 7A 14A ± 5% ± 1% 120mV P-P
+12V2DC 1.0A 7.5A 15A ± 5% ± 1% 120mV P-P
-12V 0.0A 0.4A 0.8A ± 10% ± 1% 120mV P-P
+5Vsb 0.0A 1.0A 2.0A ± 5% ± 1% 50mV P-P

*+3.3V and +5V total output not exceed 152W
*Total output for this subject power supply is 400W
