Features:

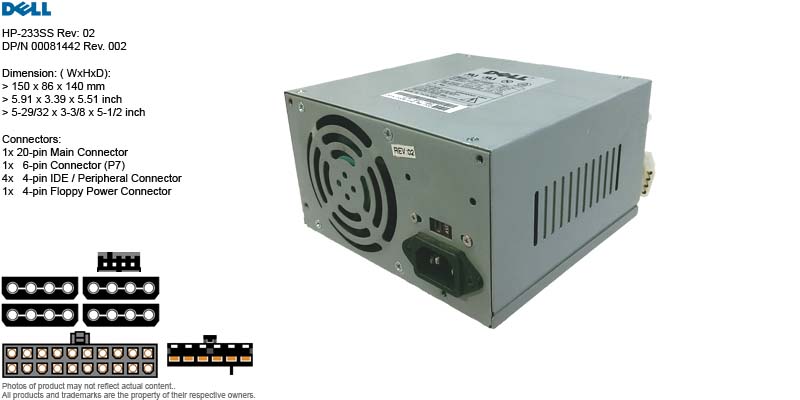

• Description: Computer Switching Power Supply
• Manufacturer: Not Specified
• Brand or Distributor: Dell
• Model:
  • Model: HP-233SS
  • DP/N: 00081442 Rev. 002
• Max Output: 230W
• Dimension: ( WxHxL):
  • 150 x 86 x 140 mm
  • 5.91 x 3.39 x 5.51 inch
  • 5-29/32 x 3-3/8 x 5-1/2 inch
• Power Rating:
  • AC Input:
    • 115V~ 50-60Hz 6A
    • 230V~ 50-60Hz 4A
  • DC Output:
    • +12V 6A
    • -12V 0.3A
    • +5V 29A
    • -5V 0.3A
    • +3.3V 14A
    • +5VFP 50mA
    • Max. Output Power 230W
    • Fuse Rating: T6.3AH / 250VAC
• Connectors:
  • 1x 20-pin Main Connector (P1)
  • 1x 6-pin Connector (P7)
  • 4x 4-pin IDE / Peripheral Power Connector (P2, P3, P5, P6)
  • 1x 4-pin Floppy Power Connector (P4)
• Overall Wire Length:
  • 11.5 inch (Wire #1)
    • Power Supply to 20-pin Main Connector (P1)
  • 12.5 inch (Wire #2)
    • Power Supply to 6-pin Connector (P7)
  • 19.5 inch (Wire #3)
    • 12.5 inch - Power Supply to IDE 4-pin Connector (P2)
    • 7 inch - IDE 4-pin Connector (P2) to IDE 4-pin Connector (P3)
  • 12.5 inch (Wire #4)
    • Power Supply to IDE 4-pin Connector (P5)
  • 12.5 inch (Wire #4)
    • Power Supply to IDE 4-pin Connector (P6)
  • 11 inch (Wire #5)
    • Power Supply to Floppy Power Connector (P4)
• Weight: 4 lbs (estimated shipping weight 7 lbs)
• Condition: Used, may with signs of cosmetic wear or signs of use.
• Package: Non-retail packaging, in unprinted box or plastic bag.
• For use with or pulled from: (for reference only)
  • Pulled from Dell PowerEdge 2100 / 180.
  • Serial Number available or sold: 12781-6A1-1462.
