Features:

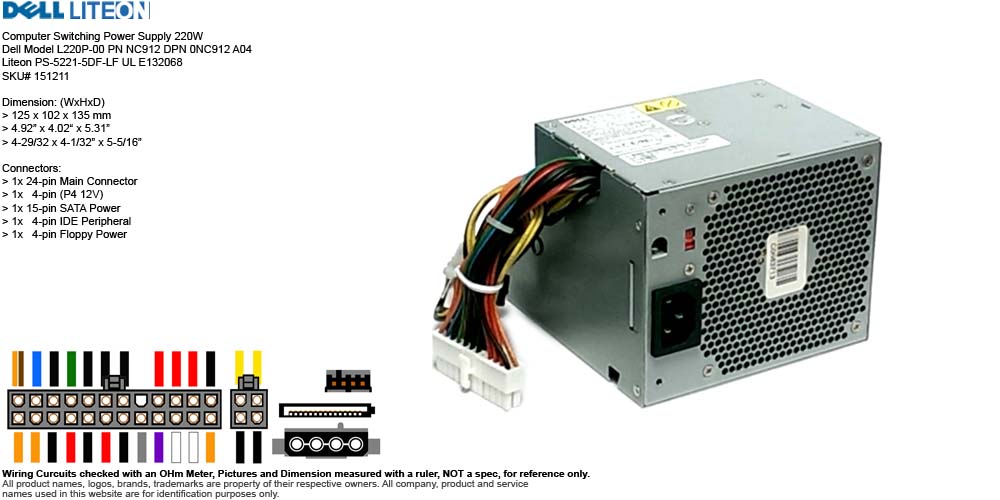

• Description: Computer Switching Power Supply 220W Dell Model L220P-00 PN NC912 DPN 0NC912 A04 Liteon PS-5221-5DF-LF UL E132068 SKU# 151211
• Manufacturer: Lite-On Technology Corp.
• Brand Name: Liteon / Dell
• Model:
  • Liteon Model L220P-00
  • P/N PS-5221-5DF-LF
  • Dell Model NC912 A04
  • DPN 0NC912 A04
• Form Factor: Dell Proprietary L Shape Power Supply
• Max Output: 220W
• Dimension: ( WxHxD):
  • 125 x 102 x 135 mm
  • 4.92” x 4.02“ x 5.31”
  • 4-29/32 x 4-1/32” x 5-5/16”
• Connectors:
  • 1x 24-pin Main Connector (P1)
  • 1x   4-pin P4 12V (P2)
  • 1x 15-pin SATA Power (P5, P6)
  • 1x   4-pin IDE Peripheral (P3)
  • 1x   4-pin Floppy Power (P4)
• Wire Length:
  • Wire #1: 4-1/2 inch
    • 4-1/2 inch:  Power Supply to 24-pin Main Connector
  • Wire #2: 16 inch
    • 16 inch: Power Supply to 4-pin P4 12V
  • Wire #3: 6-1/2 inch
    • 6-1/2 inch: Power Supply to 15-pin SATA Power
  • Wire #4: 8-1/2 inch
    • 8-1/2 inch: Power Supply to IDE Peripheral
  • Wire #5: 8 inch
    • 8 inch: Power Supply to Floppy Power
• Condition: (Subject to Inventory)
  • SKU# 151211N - New
  • SKU# 151211P - For Parts or Not Working
  • SKU# 151211S - Open Box Sample / New, may have signs of cosmetic wear
  • SKU# 151211U - Used, may have signs of cosmetic wear
• Weight: 3 lb 9 oz (Estimated Shipping Weight 6 lb 8"x8"x7" by UPS)
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• Used with: (for reference only)
  • Pulled from Dell Optiplex GX520
  • Serial Number Available or Sold: CN-0NC912-71615-66H-3EEC-A04, ...
