Features:

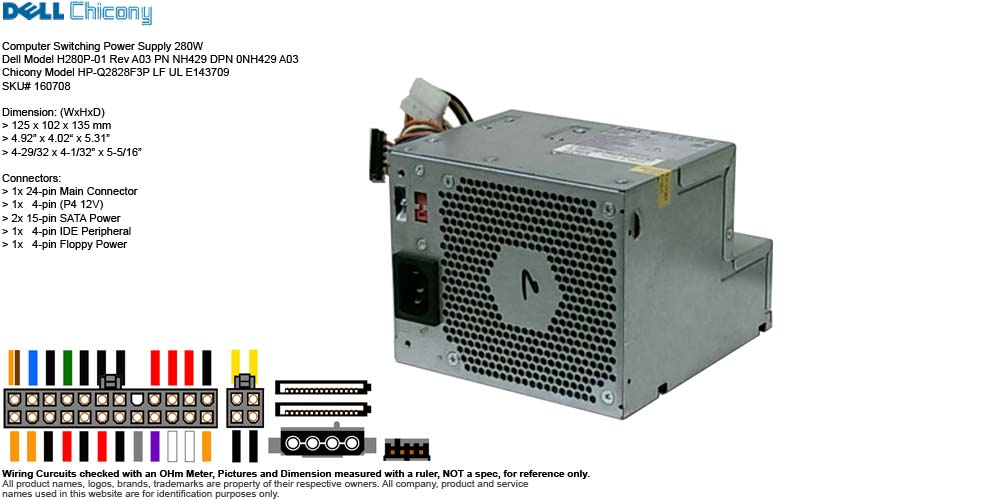

• Description: Computer Switching Power Supply 280W Dell Model H280P-01 Rev A03 PN NH429 DPN 0NH429 A03 Chicony ModelHP-Q2828F3P LF UL E143709 SKU# 160708
• Manufacturer: Chicony Power Technology Co., Ltd.
• Brand Name: Dell
• Model:
  • Chicony Model H280P-00 Rev A03
  • Chicony P/N HP-Q2828F3P LF
  • Dell Model NH429
  • DPN 0NH429 A03
• Form Factor: Dell Proprietary L Shape Power Supply
• Max Output: 280W
• Dimension: ( WxHxD):
  • 125 x 102 x 135 mm
  • 4.92” x 4.02“ x 5.31”
  • 4-29/32 x 4-1/32” x 5-5/16”
• Connectors:
  • 1x 24-pin Main Connector (P1)
  • 1x   4-pin P4 12V (P2)
  • 2x 15-pin SATA Power (P5, P6)
  • 1x   4-pin IDE Peripheral (P3)
  • 1x   4-pin Floppy Power (P4)
• Wire Length:
  • Wire #1: 4-1/2 inch
    • 4-1/2 inch:  Power Supply to 24-pin Main Connector (P1)
  • Wire #2: 16 inch
    • 16 inch: Power Supply to 4-pin P4 12V (P2)
  • Wire #3: 6-1/2 inch
    • 6-1/2 inch: Power Supply to 15-pin SATA Power (P5)
  • Wire #4: 6-1/2 inch
    • 6-1/2 inch: Power Supply to 15-pin SATA Power (P6)
  • Wire #5: 8-1/2 inch
    • 8-1/2 inch: Power Supply to IDE Peripheral (P3)
  • Wire #6: 8 inch
    • 8 inch: Power Supply to Floppy Power (P4)
• Condition: (Subject to Inventory)
  • SKU# 160708N - New
  • SKU# 160708P - For Parts or Not Working
  • SKU# 160708S - Open Box Sample / New, may have signs of cosmetic wear
  • SKU# 160708U - Used, may have signs of cosmetic wear
• Weight: 3 lb 9 oz (Estimated Shipping Weight 6 lb 8"x8"x7" by UPS)
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• Used with: (for reference only)
  • Pulled from Dell Optiplex 330
  • Serial Number Available or Sold: CN-0NH429-47890-88T-05QG, ...
