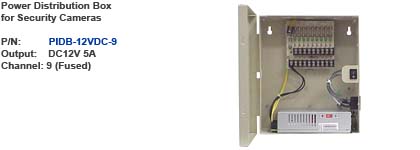

Power Distribution Box
Power Supply Security Cameras
DC12V 5A 9-Channel Fused
P/N: PIDB-12VDC-9

DC Power Distribution Box
This distribution box powers up to 9 of your 12 Volt DC devices. Each of the 9 power outputs includes its own individual fuse and LED light for monitoring the power status. This unit ships ready to go, just connect your devices and enjoy this dependable, simple, and convenient power supply. Let PI Manufacturing keep your devices powered on and working great with our professional grade power supplies.

Product Details

• 12 Volt DC 120V/240V switching power supply

• Connect and power 9 devices simultaneously

• UL listed, meaning this unit meets and exceeds rigorous safety requirements.

• 10 Amps continuous current

• 120 Watts total power output

• Each output comes with its own fuse and LED indicator.

• Fuse:

  • 1 Amp

  • Box holds 10 fuses at one time (9 + 1 spare)

  • Comes with 15 fuses total

• Punch-out holes for allowing cable access are available on the following sides:

  • Top

  • Left Side

  • Right Side

  • Rear

• Regulated

• Measures 9 3/4" L x 3 3/4" D x 8 1/8" W

• Beige housing

• Solid construction - dependable and long lasting!
