AC to DC
Power Adapter

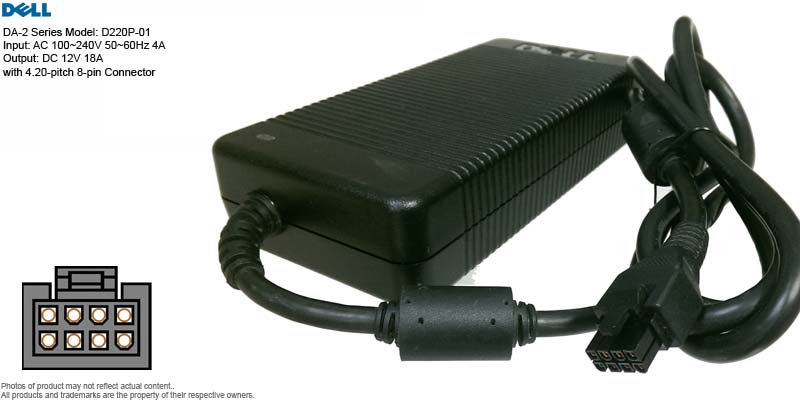

Dell DA-2 Series Model: D220P-01
PDC-MNF8M-
Features:
- Description: AC to DC Power Adapter
/ Charger
-
Manufacturer: Not Specified
- Brand
Name: Dell
- Model Number:
- Series: DA-2
- Model: D220P-01
- Dell P/N: M8811, N112H,
Y2515
- DP/N: 0M8811, 0N112H, 0Y2515
- Power Rating:
- Input: AC
100-240V 50-60Hz 4A
- Output: DC
12V 18A
- Connector:
4.20-pitch 8-pin Dell
Proprietary Connector
- Overall Wire
Length: 70-inch
- Power Cord: 6-foot Standard PC
Power Cord 5.15P / C13 Connector (subject to change)
- Weight: 4 lbs (estimated shipping
weight 6 lbs)
- Condition:
Used, may with signs of cosmetic wear or signs of use.
- Packaging: Non-retail
packaging, in unprinted box or plastic bag.
- For use
with or saved from: (reference only)
- Pulled from Dell Optiplex 745 DCTR Ultra Small Form Factor USF
USFF Computer
with Pentium 4 HT CPU.
- Pulled from Dell Optiplex 755 DCTR
Ultra Small Form Factor USF USFF Computer with Core 2 Duo CPU.
- Pulled from Dell Optiplex GX620
DCTR Ultra Small Form Factor USF USFF Computer with Pentium D CPU.
- Serial Numbers Available or Sold:
-
SN: 0113215~0113226, 0002540, 0090734~0090739
- CN-0M8811-48661-59J-3W80-A02, CN-0M8811-48661-64T-6AC6-A03,
CN-0M8811-48661-64U-6DHY-A03, CN-0M8811-48661-557-0DCY-A01,
CN-0M8811-48661-64U-6DMV-A03, CN-0M8811-48661-64T-6A63-A03,
CN-0M8811-48661-64U-6CE7-A03, CN-0M8811-48661-64T-6AFL-A03,
CN-0M8811-48661-64U-6CH0-A03, CN-0M8811-48661-64U-6CAK-A03,
CN-0M8811-48661-64U-6DCY-A03,
- CN-0N112H-48661-86B-1FCS-A00, CN-0N112H-48661-86B-1FG9-A00,
CN-0N112H-48661-86B-1FI4-A00, CN-0N112H-48661-86B-1FKJ-A00,
CN-0N112H-48661-86H-1RLD-A00, CN-0N112H-48661-86H-1RYV-A00,
CN-0N112H-48661-86H-1RPA-A00, CN-0N112H-48661-85N-0KD7-A00,
CN-0N112H-48661-86B-1FAT-A00, CN-0N112H-48661-86H-1RNG-A00,
CN-0N112H-48661-85S-0ZDP-A00, CN-0N112H-48661-868-1E2A-A00,
CN-0N112H-48661-86H-1QHO-A00, CN-0N112H-48661-86B-1FJ8-A00,
CN-0N112H-48661-86B-1FG8-A00,
- CN-0Y2515-48661-477-01M4-A00,
CN-0Y2515-48661-47J-04LY-A00, CN-0Y2515-48661-477-01LU-A00,
|
