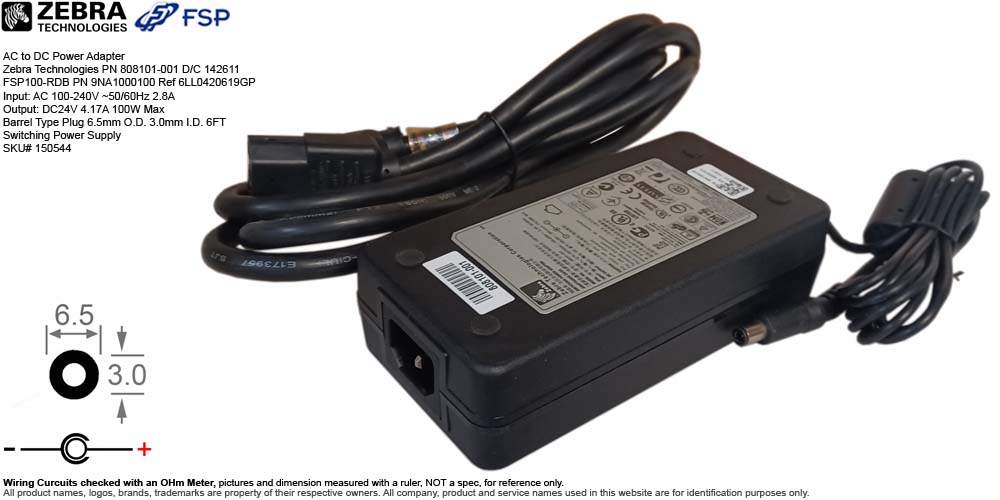

AC to DC Power Adapter
Zebra Technologies PN 808101-001 D/C 142611
FSP100-RDB PN 9NA1000100 Ref 6LL0420619GP
Input: AC 100-240V ~50/60Hz 2.8A Output: DC24V 4.17A 100W Max
Barrel Type Plug 6.5mm O.D. 3.0mm I.D. 6FT
Switching Power Supply SKU# 150544
PDC-xxx

Features:

  • Description: AC to DC Power Adapter Zebra Technologies PN 808101-001 D/C 142611 FSP100-RDB PN 9NA1000100 Ref 6LL0420619GP Input: AC 100-240V ~50/60Hz 2.8A Output: DC24V 4.17A 100W Max Barrel Type Plug 6.5mm O.D. 3.0mm I.D. 6FT Switching Power Supply SKU# 150544
  • Manufacturer: FSP
  • Brand or Distributor: Zebra / FSP
  • Model:
    • 808101-001
    • D/C 142611
    • FSP100-RDB
    • 9NA1000100
    • 6LL0420619GP
  • Features:
    • Input: AC 100-240V ~50/60Hz 2.8A
    • Output: DC24V 4.17A 100W Max
    • Barrel Type Plug 6.5mm (O.D) 3.0mm (I.D.)
    • Overall Wire Length: 6 FT
    • Switching Power Supply
  • AC Power Connection:
    • NEMA 5-15P
    • IEC C13
  • Dimension HxWxD: 145.5x75x39mm
  • Weight: 1 lb 14 oz (estimated shipping weight 2 lb 3 oz)
  • Condition: (Subject to Inventory)
    • SKU# 150544N - New
    • SKU# 150544S - Open Box Sample / New, may have signs of cosmetic wear
    • SKU# 150544U - Used, may have signs of cosmetic wear
  • Package: Non-retail packaging, in Unprinted Reused Box or Plastic Bag.
  • For use with or pulled from: (for reference only)
    • Serial Number Available or Sold:
      • H00007974 Used (Sample Picture)
