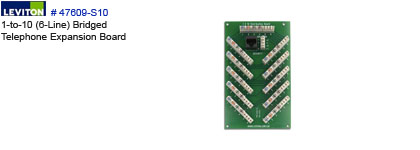

1-to-10 (6-Line) Bridged Telephone Expansion Board
Leviton # 47609-S10 for
Structured Media Center
1x (6-pair 110-IDC) & 1x (RJ45 + 2-pair 110-IDC) to 10x (6-pair 110-IDC)
PN-SMC-LV-xxx

Link(s):


Brand Features:

Leviton’s three new Telephone Expansion Board offerings are designed for use in Leviton’s Structured Media Enclosures, including the Multi Dwelling Unit (MDU) Enclosure and the Series 140, 280 and 420 Structured Media Centers (SMC’s) to support a variety of telephone distribution configurations. They quick-snap into molded-in brackets in Leviton’s MDU Enclosure, or can be attached to Leviton Pre-Configured Structured Cabling Panels, Single Plastic Brackets or Expansion Plastic Brackets for mounting in Series 140, 280 and 420 Structured Media Centers.

Item Description:

1x10 6-line Bridged Telephone Expansion Board

Technical Information
  • Dimensional Data
    • Height: 5.75 Inch
    • Width: 3.50 Inch
    • Depth: 0.63 Inch
  • Mechanical Specifications
    • Telephone Bridge: Eleven Bridged 6-Pair 110-IDC, 1 RJ45
  • Product Features
    • Type: Expansion Board
    • Description: 1X10 6-Line Bridged Telephone and Security
    • 1X10 6-Line Brdg Tele and Security: 1
    • Standards and Certifications: UL
    • Warranty: 2 Year Limited
Features and Benefits
  • Bridge up to 6 telephone lines to 10 locations.
  • Fits easily into Leviton Structured Media Panels.
