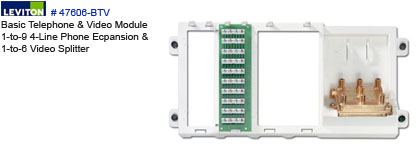

Basic Telephone & Video Module
Leviton # 47606-BTV for
Structured Media Center
1-to-9 4-Line Phone Expansion &
1-to-6 Video Splitter
PN-SMC-LV-xxx

Link(s):

Brand Features

Leviton’s Basic Telephone and Video Panel combines a 1x9 Bridged Telephone Board and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for essential telephone and video distribution. It handles up to four telephone lines through to nine telephone connections, making it suitable for phone, fax or modem. The panel features video output for up to six video connections.

Item Description

Basic Telephone and Video Panel

Technical Information
  • Dimensional Data
    • Height: 6.13 Inch
    • Width: 13.3 Inch
    • Depth: 2.28 Inch
  • Material Specifications
    • Bracket Material: ABS Plastic
  • Mechanical Specifications
    • Telephone Bridge: Ten Bridged 4-Pair 110-Type IDC Connectors
    • Video Splitter: 1 F-Type Female Input, 6 F-Type Female Output
    • Video Splitter Frequency: 2 GHz
  • Product Features
    • Type: Full Size Pre-Configured Cabling Panel
    • Description: Basic Telephone and Video
    • 1X9 Bridged Telephone Module: 1
    • 6-Way Video Splitter: 1
    • Standards and Certifications: CULUS/FCC/TIA/EIA
    • Warranty: 2 Year Limited
    • Bracket Material: ABS Plastic
  • Standards and Certifications
    • CULUS Listed: Yes
    • TIA/EIA: 568A
    • FCC Rated: Part 68 Compliant
  • Structured Media Components
    • 1X9 Bridged Telephone Module: 1
    • 6-Way Video Splitter: 1
Features and Benefits
  • Handles up to four telephone lines through to 9 telephone connections, and 6 video connections.
  • Panel includes a plastic bracket, 1X9 Bridge Telephone Board and a 6-Way 2 GHz Video Splitter.
  • Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.
  • Offers essential telephone and video distribution
