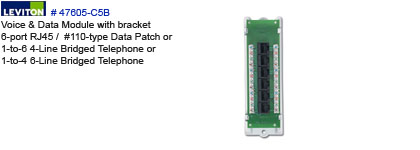

Voice & Data Module with Bracket
Leviton # 47605-C5B for
Structured Media Center
6-port RJ45 / #110-type Data Patch or
1-to-6 4-Line Bridged Telephone or
1-to-4 6-Line Bridged Telephone
PN-SMC-LV-xxx

Link(s):

Brand Features

Compact Pre-configured Structured Cabling Panels are the simple solution for basic telephone and TV distribution. These Panels feature a space saving profile and provide simple bridged telephone connections to nine locations and 1GHz video to eight locations. Compact Series Panels are ideal for multi-dwelling units and apartments or any place where space and budgets are of great concern.

Item Description

Category 5 Voice & Data Module 6-Port, with bracket (Individual boxed unit pack)

Technical Information
  • Dimensional Data
    • Height: 6.568 Inch
    • Width: 2.132 Inch
    • Depth: 2.185 Inch
  • Mechanical Specifications
    • Cat 5e Voice Data: Six Catagory 5e ports and six 110-IDC Conn.
  • Product Features
    • Type: Stand-Alone Module
    • Description: Catagory 5e Voice and Data
    • Cat 5e Voice Data Module: 1
    • 1X6 4-Line Bridged Telephone: ABS Plastic
    • 1X4 6-Line Bridged Telephone: Printed Circuit Board
    • Standards and Certifications: UL
    • Warranty: 2 Year Limited
  • Standards and Certifications
    • UL Listed: Recognized Component
  • Structured Media Components
    • Cat 5e Voice Data Module: 1
    • 1X6 4-Line Bridged Telephone: ABS Plastic
    • 1X4 6-Line Bridged Telephone: Printed Circuit Board

Features and Benefit:

  • Fits easily into Leviton Structured Media enclosure, or as a stand-alone module.
  • Patch data or telephone service to 6 remote locations.
