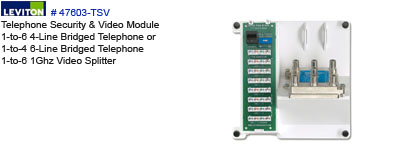

Telephone Security & Video Module
Leviton # 47603-TSV for
Structured Media Center
 1-to-6 4-Line Bridged Telephone or
1-to-4 6-Line Bridged Telephone
1-to-6 1Ghz Video Splitter
PN-SMC-LV-xxx

Link(s):

Brand Features

Compact Pre-configured Structured Cabling Panels are the simple solution for basic telephone and TV distribution. These Panels feature a space saving profile and provide simple bridged telephone connections to nine locations and 1GHz video to eight locations. Compact Series Panels are ideal for multi-dwelling units and apartments or any place where space and budgets are of great concern.

Item Description

Compact Series: Telephone Security and 6-Way Video Panel

Technical Information
  • Dimensional Data
    • Height: 6.55 Inch
    • Width: 6.55 Inch
    • Depth: 3.01 Inch
  • Mechanical Specifications
    • Telephone Security: 7 110-IDC, 1 RJ45 Security, 1 RJ45 Expansion
  • Product Features
    • Type: Compact Series Pre-Configured Cabling Panel
    • Description: Telephone Security and 6-Way Video
    • Telephone Security Module: 1
    • 6-Way Video Splitter: 1
    • 1X6 4-Line Bridged Telephone: ABS Plastic
    • 1X4 6-Line Bridged Telephone: Printed Circuit Board
    • 1X10 6-Line Brdg Tele and Security: Die-Cast
    • Standards and Certifications: CULUS/FCC/TIA/EIA
    • Warranty: 2 Year Limited
  • Standards and Certifications
    • CULUS Listed: Yes
    • TIA/EIA: 568A
    • FCC Rated: Part 68 Compliant
  • Structured Media Components
    • Telephone Security Module: 1
    • 6-Way Video Splitter: 1
    • 1X6 4-Line Bridged Telephone: ABS Plastic
    • 1X4 6-Line Bridged Telephone: Printed Circuit Board
    • 1X10 6-Line Brdg Tele and Security: Die-Cast
