Compact Pre-configured Structured Cabling Panels are the simple solution for basic data, telephone and TV distribution. These Panels feature a space saving profile and provide simple bridged telephone connections to 4 locations, data connections to 4 locations and 1GHz video to six locations. Compact Series Panels are ideal for multi-dwelling units and apartments or any place where space and budgets are of great concern.

Item Description

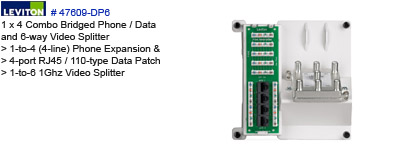

Compact Series: 1 x 4 Combo Bridged Phone and Data Board and 6-way Video Spliiter

Application

Leviton’s Compact Series: 4 Telephone, 4 Data and 6-way Video Panel combines a Combo Phone and Data board and a 6-way 1 GHz splitter on a dedicated plastic bracket for essential telephone, data, and TV RF signal distribution in an apartment, small house, or condominium. The Combo Board bridges the incoming telephone wiring to up to four Cat 5e cables running to four telephone locations in the home. The board also enables patching input for four data connections from a router or Ethernet switch to four Cat 5e cables to computer or other network device locations. In addition, the included passive splitter connects an incoming TV RF signal to RG6 coaxial cable runs to as many as six different TV locations in the home.

Features

• Offers essential telephone, data and video distribution
• Includes 4 IDC punchdowns to support 4 telephones in 4 locationsn Includes 4 Data jacks for patching data to 4 network device locations
• Includes 6-way SCTE compliant splitter for up to 6 TV locations

Note

• Determine outlet locations and carefully plan cable routing to ensure the selected unit satisfies requirements
• Install 75 ohm termination caps on unused outputs of the 6-way splitter to reduce TV noise and RF EMI/EMR from the splitter

Typical Specification

The Compact Series Telephone, Data and 6-way Video Panel shall meet all applicable standards: TIA/EIA-570-B and FCC Part 68 compliance. The panel shall handle up to four telephone lines to four telephone connections, making it suitable for phone, fax or modem. The Panel shall also distribute data through four Cat 5e jacks and support up to six TV outputs. The unit shall include a plastic mounting bracket, Combo Phone and Data Board and 6-way 1 GHz SCTE compliant passive splitter. The manufacturer shall provide a two-year limited product warranty.
