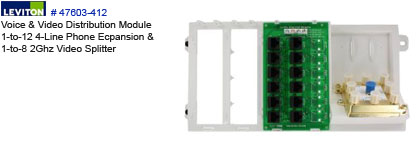

Voice & Video Distribution Module
Leviton # 47603-412 for
Structured Media Center
1-to-12 4-Line Phone Expansion &
1-to-8 2Ghz Video Splitter
PN-SMC-LV-xxx

Link(s):

Brand Features

Leviton’s Pre-configured Structured Cabling Panels combine some of Leviton’s most popular voice, data and radio frequency modules to create an economical, one stop home media distribution point. Some modules are available in expansion styles to fill unused panel slots as shown below. Choose the pre-configured combination that best meets your needs and then enhance it with expansion boards or stand alone modules.

Item Description

4x12 Telephone Distribution Board on bracket w/ 8-way 2GHz splitter. pkd: 1/small box, 4/carton boxed.

Applications

Leviton’s 4x12 Telephone Distribution Panel combines a4x12 Telephone Line Distribution Board and an 8-Way VideoSplitter in a dedicated plastic bracket for essential telephoneand video distribution. It handles up to four telephone linesthrough 12telephone connections, making it suitable forphone, fax or modem. The panel features video output forup to 8 video connections. Links with other distributionboards, modules, or panels to expand the system.

Physical Specifications

  • Materials:
    • Bracket: ABS plastic, white.
    • Telephone Distribution Board: Printed circuit board with 12 8P8C jacksfor 4-line distribution.
    • 1x8 Splitter,2GHz:Gold-flashed F-connectors Tin-plated zinc die-cast housing and glass-printed
  • Dimensions:
    • Bracket:6.13”H x 13.30”W x 2.28”D
    • Telephone Distribution Board:5.8”H x 3.5”W x .063”D
    • Splitter, 2GHz:3.36”H x 2.65”W x 1.14”D

Design Considerations

  • Fits easily into any Leviton Structured Media™enclosure, or can be used as a stand-alone unit.
  • Determine outlet locations and carefully plan cable routing to ensure the selected panel satisfies requirements. Additional Category 5e Voice and Data Boards available separately.
  • 12 modular RJ-45 jack outputs.
  • 4-pair 110 type IDC inputs.
  • Install 75 Ohm termination caps on unused outputs of 8-Wayvideo splitter to reduce signal distortion and 'ghosting'.

Standards Compliance

Meets all applicable standards: cULus Listed; TIA/EIA-568A and FCC Part 68 compliant.

Warranty

Two-year limited product warranty.

Typical Specifications

The 4x12Telephone Distribution Panel standards: cULus Listed; TIA/EIA-568A and FCC Part 68compliant. The panel shall include a plastic mounting bracket, and Telephone Board Distribution. It shall fit into any Leviton Structured Media enclosure, or be used as a stand-alone unit. The panel shall feature12 RJ-45 ports on the Telephone Distribution Board and a 1x8, 2GHz splitter. A two-year limited product warranty shall be provided by the manufacturer.
