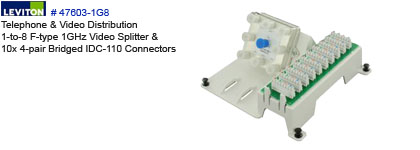

Telephone & Video Distribution
10x 4-pair Bridged IDC-110 Connectors &
1-to-8 F-type 1GHz Video Splitter
PN-SMC-LV-xxx

Link(s):

Brand Features:

Compact Pre-configured Structured Cabling Panels are the simple solution for basic telephone and TV distribution. These Panels feature a space saving profile and provide simple bridged telephone connections to nine locations and 1GHz video to eight locations. Compact Series Panels are ideal for multi-dwelling units and apartments or any place where space and budgets are of great concern.

Item Description:

Compact Series: Telephone and 8-Way Video Panel

Technical Information:
  • Dimensional Data
    • Height: 6.55 Inch
    • Width: 6.55 Inch
    • Depth: 3.01 Inch
  • Material Specifications
    • Bracket Material: ABS Plastic
  • Mechanical Specifications
    • Telephone Bridge: Ten Bridged 4-Pair 110-Type IDC Connectors
    • Video Splitter: 1 F-Type Female Input, 8 F-Type Female Output
    • Video Splitter Frequency: 1 GHz
  • Product Features
    • Type: Compact Series Pre-Configured Cabling Panel
    • Description: Telephone and 8-Way Video
    • 1X9 Bridged Telephone Module: 1
    • 8- Way Video Splitter: 1
    • Standards and Certifications: CULUS/FCC/TIA/EIA
    • Warranty: 2 Year Limited
    • Bracket Material: ABS Plastic
  • Standards and Certifications
    • CULUS Listed: Yes
    • TIA/EIA: 568A
    • FCC Rated: Part 68 Compliant
  • Structured Media Components
    • 1X9 Bridged Telephone Module: 1
    • 8- Way Video Splitter: 1
Features and Benefits:
  • Handles up to 4 telephone lines through to 9 locations, and routes video to 8 locations.
  • Panel includes a plastic mounting bracket, 1X9 Bridged telephone Board and a 8-Way 1 GHz Video Splitter.
  • Fits in to any Leviton Structured Media enclosure or used as a stand-alone unit.
  • Offers essential telephone and video distribution.
