Brand Features:

Compact Pre-configured Structured Cabling Panels are the simple solution for basic telephone and TV distribution. These Panels feature a space saving profile and provide simple bridged telephone connections to nine locations and 1GHz video to eight locations. Compact Series Panels are ideal for multi-dwelling units and apartments or any place where space and budgets are of great concern.

Item Description:

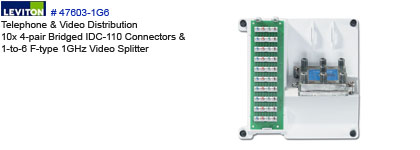

Compact Series: Telephone and 6-Way Video Panel

Technical Information:

• Dimensional Data
  • Height: 6.55 Inch
  • Width: 6.55 Inch
  • Depth: 3.01 Inch
• Material Specifications
  • Bracket Material: ABS Plastic
• Mechanical Specifications
  • Telephone Bridge: Ten Bridged 4-Pair 110-Type IDC Connectors
  • Video Splitter: 1 F-Type Female Input, 6 F-Type Female Output
  • Video Splitter Frequency: 1 GHz
• Product Features
  • Type: Compact Series Pre-Configured Cabling Panel
  • Description: Telephone and 6-Way Video
  • 1X9 Bridged Telephone Module: 1
  • 6-Way Video Splitter: 1
  • Standards and Certifications: CULUS/FCC/TIA/EIA
  • Warranty: 2 Year Limited
  • Bracket Material: ABS Plastic
• Standards and Certifications
  • CULUS Listed: Yes
  • TIA/EIA: 568A
  • FCC Rated: Part 68 Compliant
• Structured Media Components
  • 1X9 Bridged Telephone Module: 1
  • 6-Way Video Splitter: 1

Features and Benefits:

• Handles up to 4 telephone lines through to 9 locations, and routes video to 6 locations.
• Panel includes a plastic mounting bracket, 1X9 Bridged telephone Board and a 6-Way 1 GHz Video Splitter.
• Fits in to any Leviton Structured Media enclosure or used as a stand-alone unit.
• Offers essential telephone and video distribution.
