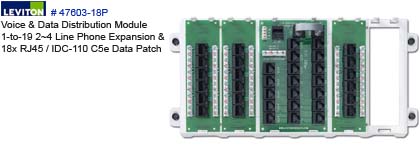

Voice & Video Distribution Module
Leviton # 47603-18P for
Structured Media Center
1-to-19 2~4-Line Phone Expansion &
18-port RJ45 / 110-IDC Cat.5e Data Patch
PN-SMC-LV-xxx

Link(s):

Overview

  • Easily set up a fully-integrated, whole-house media network
  • Create a custom telephone system that distributes multiple lines to multiple extensions
  • Start with the basics and expand as your requirements grow
  • Up to 4 phone lines and up to 19 locations

Essential Info:

Leviton’s 18-Port Structured Media™ Panel combines a Telephone Distribution Module and three Cat.5e Voice and Data Modules in a dedicated bracket for multi-line systems and expanded home networking. Provides two to four lines of service to up to 19 voice and/or data locations (additional module required). Distribute "Line 1" service to up to 12 different locations; distribute four-line service to up to eight different locations. Link with other distribution panels or modules to expand the system.

What's Included:

  • Leviton 18-Port Structured Media Panel 47603-18P

    • More Info:

    Transform an ordinary house into a fully-integrated home that supports whole-house Ethernet, telephone and security systems. Getting started is easier than you think with these Leviton Structured Media Panels. They serve as the central system convergence point, and can be expanded with an array of expansion modules as your needs or budget increase.

    Specifications:

    Manufacturer: Leviton
    Manufacturer Product No.: 47603-18P
    Bracket Dimensions: 6 1/4" x 13.06" x 2 1/2"
    Telephone Distribution Module Dimensions: 5.8" x 3.5" x .063"
    Cat. 5e Voice/Data Module Dimensions: 2.24
