Leviton’s Pre-configured Structured Cabling
Panels combine some of Leviton’s most
popular voice, data and radio frequency
modules to create an economical, one stop
home media distribution point. Some modules
are available in expansion styles to fill
unused panel slots as shown below. Choose
the pre-configured combination that best
meets your needs and then enhance it with
expansion boards or stand alone modules.
Item Description

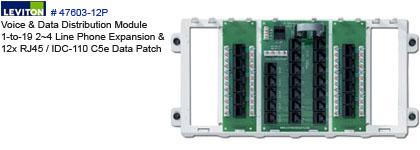

12-Port Structured Media Panel
Features and Benefits
-
Provides two to
four lines of
service to up to
19 connections
when combined
with other
modules.
-
Routes voice and
data service to
12 remote
locations via 2
Category 5e
Video and data
Boards.
-
Panel includes a
plastic bracket,
Telephone Line
Distribution
Module, 2
Category 5e
Voice & Data
Boards and 12
8-Conductor Flat
telephone patch
cords.
-
Fits into any
Leviton
Structured Media
enclosure or
used as a
stand-alone
unit.
-
Offers
multi-line
systems and
expanded
networking.
Technical Information
-
Dimensional
Data
-
Height:
6.13
Inch
-
Width:
13.3
Inch
-
Depth:
2.01
Inch
-
Material
Specifications
-
Bracket
Material:
ABS
Plastic
-
Mechanical
Specifications
-
Telephone
Line
Distribution:
19 8P8C
2-4-Line
Dist, 1
Test, 1
Aux, 1
110-IDC
-
Cat 5e
Voice
Data:
12
Catagory
5e ports
and 12
110-IDC
Conn.
-
Product
Features
-
Type:
Full
Size
Pre-Configured
Cabling
Panel
-
Description:
12-Port
Structured
Media
-
Cat 5e
Voice
Data
Module:
2
-
Telephone
Line
Distribution
Module:
1
-
Standards
and
Certifications:
CULUS/FCC/TIA/EIA
-
Warranty:
2 Year
Limited
-
Bracket
Material:
ABS
Plastic
