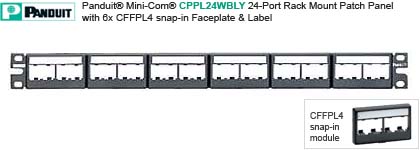

Panduit® Mini-Com® CPPL24WBLY
24-Port Modular Faceplate with Labels
Wall Mountable Patch Panels
PN-KS-PD-CPPL24WBLY
Links:
Descriptions:
- Release snap feature
on faceplate allows front access to installed modules
- Accept Mini-Com®
Modules for UTP, fiber optic, and audio/video, which snap in and out
for easy moves, adds, and changes
- Label versions
available for easy port identification; replacement label/label
covers available
- Mount to standard EIA
19" racks or 23" racks with optional extender brackets
- Angled patch panels
facilitate proper bend radius control and minimize the need for
horizontal cable managers
Specifications:
|
RoHS
Compliancy Status |
Compliant |
|
Note |
CPPL24WBLY replaces
CPPL24WBL |
|
Part
Description |
24-port patch panel
with labels, supplied with six factory installed CFFPL4 type
front removable snap-in faceplates. |
|
Product
Type |
Modular Patch Panel |
|
Color |
Black |
|
Depth
(In.) |
0.88 |
|
Height
(In.) |
1.72 |
|
Width
(In.) |
19 |
|
No.
of Module Spaces |
24 |
|
No.
of Ports |
24 |
|
No.
of Rack Spaces |
1 |
|
Patch
Panel Style |
Flat |
|
