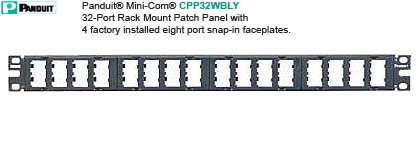

Panduit® Mini-Com® CPP32WBLY
32-Port Modular Faceplate
Wall Mountable Patch Panels
PN-KS-PD-CPP32WBLY
Links:
Descriptions:
- Accept Mini-Com®
Modules for UTP, fiber optic, and audio/video, which snap in and out
for easy moves, adds, and changes
- Conserve valuable rack
space, but may be limited to specific modules (UTP)
- Pre-printed numbers
above each port for easy identification
- Mount to standard EIA
19" racks or 23" racks with optional extender brackets
- Angled patch panels
facilitate proper bend radius control and minimize the need for
horizontal cable managers
- Enhanced label version
of 48-port high density patch panels only accept UTP modules
Specification:
|
Part Number |
CPP32WBLY |
|
RoHS Compliancy
Status |
Compliant |
|
Note |
CPP32WBLY replaces
CPP32WBL |
|
Part Description |
32 port patch
panel supplied with 4 factory installed eight port snap-in
faceplates. |
|
Product Type |
Modular Patch
Panel |
|
Color |
Black |
|
Width (In.) |
19.00 |
|
Width (mm) |
482.6 |
|
CE Compliant |
No |
|
Mounting Method |
19 inch mounting |
|
No. of Connectors |
32 |
|
No. of Ports |
32 |
|
No. of Rack Spaces |
1 |
|
Options |
High-desity,
snap-in faceplates |
|
Performance Level |
Modular, Dependent
on Populated Modules |
|
Pricing
Description |
Patch Panel, 32
Port, Modular, Black |
|
Termination |
Modular |
|
Wiring Scheme |
Modular, Dependent
on Populated Modules |
|
