Link(s):

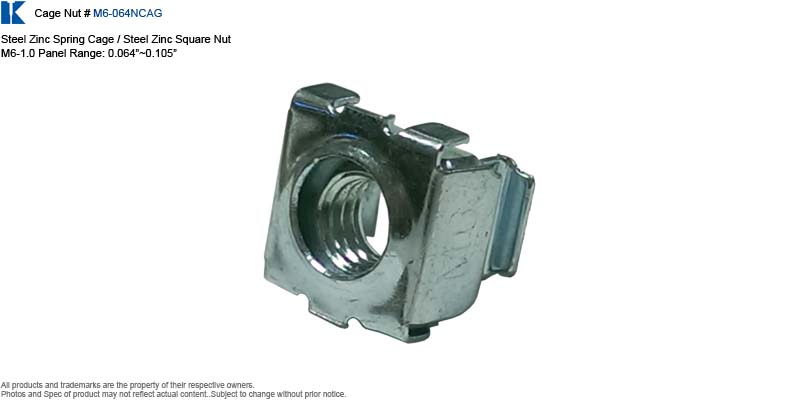

• Metric Cage Nut - Steel Cage & Steel Nut (K0003)

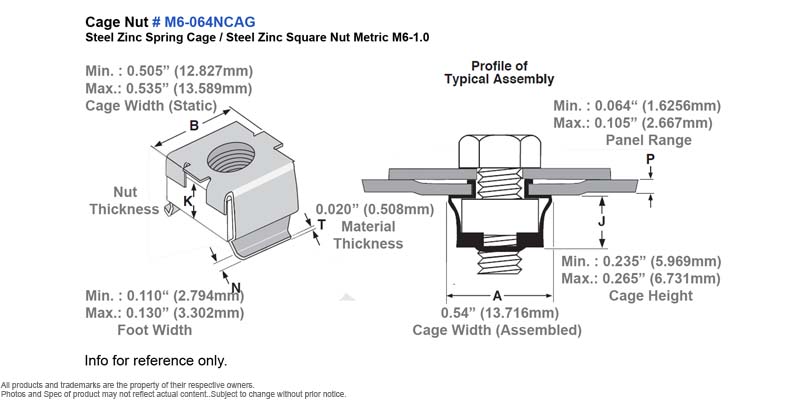

Features:

• Manufacturer: Not Specified
• Brand: Unbranded
• Part Number: M6-064NCAG
• Material:
  • Spring Cage: Steel Zinc
  • Square Nut: Steel Zinc
• Nut Size: M6-1.0
• Panel Range:
  • Min.: 0.064" (≈ 1.6256 mm)
  • Max.: 0.105" (≈ 2.667 mm)
• Cage Height:
  • Min.: 0.235" (≈ 5.969 mm)
  • Max.: 0.265" (≈ 6.731 mm)
• Cage Width:
  • Static:
    • Min.: 0.505" (≈ 12.827 mm)
    • Max.: 0.535" (≈ 13.589 mm)
  • Assembled
    • 0.54" (≈ 13.716 mm)
• Material Thickness: (Ref)
  • 0.020" (≈ 0.508 mm)
• Foot Width:
  • Min.: 0.110" (≈ 2.794 mm)
  • Max.: 0.130" (≈ 3.302 mm)
• Specification for reference only, subject to change.
• Condition: New, bulk, seller repackaged.
• Package: Non-retail packaging, in unprinted box or plastic bag.
