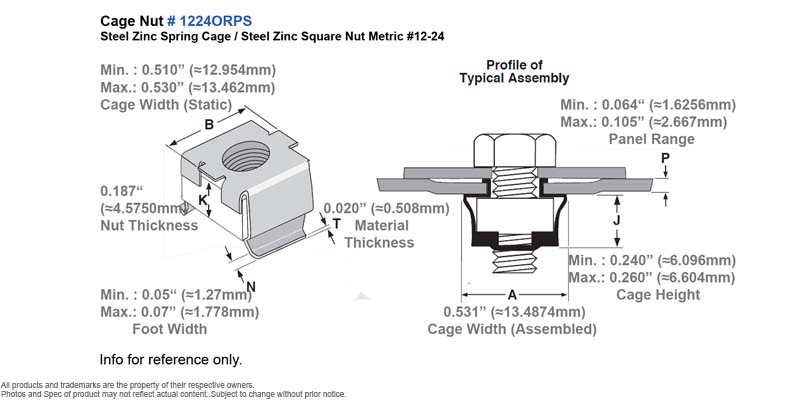

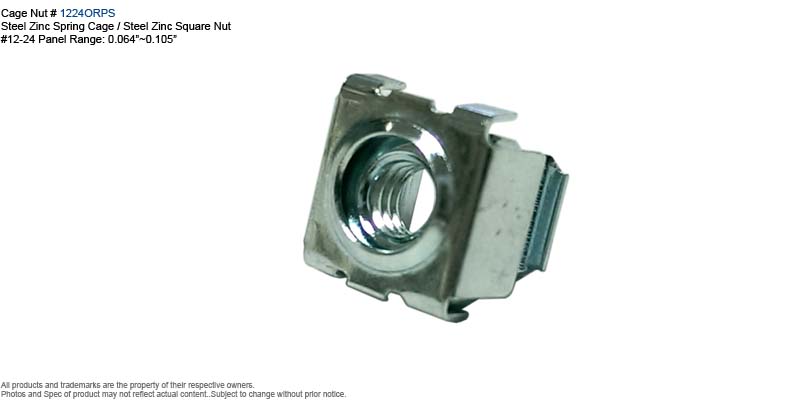

Features:

• Manufacturer: Not Specified
• Brand: Unbranded
• Part Number: 1224ORPS
• Material:
  • Spring Cage: Steel Zinc
  • Square Nut: Steel Zinc
• Nut Size: # 12-24
• Panel Range:
  • Min.: 0.064" (≈1.6256 mm)
  • Max.: 0.105" (≈2.667 mm)
• Cage Height:
  • Min.: 0.24" (≈6.096 mm)
  • Max.: 0.26" (≈6.604 mm)
• Cage Width:
  • Static:
    • Min.: 0.51" (≈12.954 mm)
    • Max.: 0.53" (≈13.462 mm)
  • Assembled
    • 0.531" (≈13.4874 mm)
• Material Thickness: (Ref)
  • 0.020" (≈0.508 mm)
• Foot Width:
  • Min.: 0.05" (≈1.27 mm)
  • Max.: 0.07" (≈1.778 mm)
• Specification for reference only, subject to change.
• Condition: New, bulk, seller repackaged.
• Package: Non-retail packaging, in unprinted box or plastic bag.
