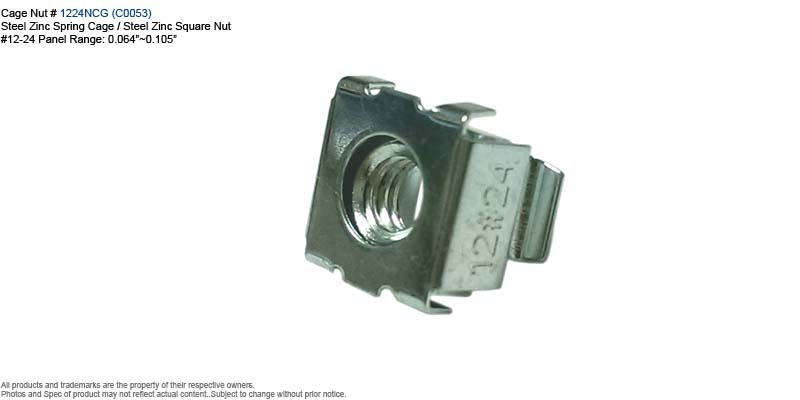

• Imperial Cage Nut - Steel Cage & Stainless or Steel Nut (K0003)

Features:

• Manufacturer: Not Specified
• Brand: Unbranded
• Part Number: 1224NCG
• Material:
  • Spring Cage: Steel Zinc
  • Square Nut: Steel Zinc
• Nut Size: # 12-24
• Panel Range:
  • Min.: 0.064" (1.6256 mm)
  • Max.: 0.105" (2.667 mm)
• Cage Height:
  • Min.: 0.24" (6.096 mm)
  • Max.: 0.26" (6.604 mm)
• Cage Width:
  • Static:
    • Min.: 0.51" (12.954 mm)
    • Max.: 0.53" (13.462 mm)
  • Assembled
    • 0.531" (13.4874 mm)
• Material Thickness: (Ref)
  • 0.020" (0.508 mm)
• Foot Width:
  • Min.: 0.05" (1.27 mm)
  • Max.: 0.07" (1.778 mm)
• Specification for reference only, subject to change.
• Condition: New, bulk, seller repackaged.
• Package: Non-retail packaging, in unprinted box or plastic bag.
