Network Ethernet Switch

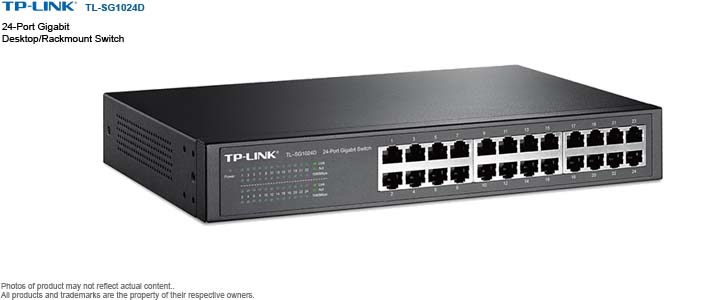

TP-Link TL-SG1024D
24-port Gigabit Switch
SW-TP-xxx
Overview:
- 24 10/100/1000Mbps
ports
- Innovative
energy-efficient technology saves power up to 25%
- Supports MAC address
self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Hardware Features:
-
Standards and Protocols: IEEE 802.3i, IEEE
802.3u, IEEE 802.3ab , IEEE 802.3x
- Interface: 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable
(maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e
or above cable (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: 100-240VAC, 50/60Hz
- Power Consumption: Maximum: 14.6W (220V/50Hz)
- Dimensions ( W x D x H ): 11.6*7.1*1.7 in.
(294*180*44 mm)
Performance:
- Switching Capacity: 48Gbps
- Packet Forwarding Rate: 35.7Mpps
- MAC Address Table: 8K
- Jumbo Frame: 10KB
- Green Technology: Innovative energy-efficient
technology saves power up to 25%
- Transfer Method: Store-and-Forward
Other Spec.:
- Certification: FCC, CE, RoHS
- Package Contents
- 24-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
- System Requirements: Microsoft® Windows® XP,
Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
- Environment
- Operating Temperature: 0°C~40°C
(32°F~104°F);
- Storage Temperature: -40°C~70°C
(-40°F~158°F);
- Operating Humidity: 10%~90%
non-condensing;
- Storage Humidity: 5%~90% non-condensing
|
