Network Switch

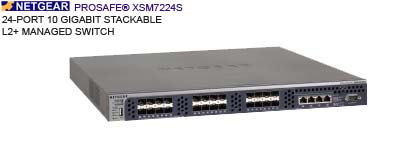

Netgear Prosafe® XSM7224S
24-port 10 Gigabit Stackable L2+ Managed Switch
SW-NG-24-xxx

Introduction:

• Purposely built for virtualization and distributed LACP

• Top-of-Rack: stackable solution for Active-Active server teaming

• Aggregation and Core scalability with L3 licensing

Overview:

The NETGEAR ProSafe 10 Gigabit Stackable Managed Switch, XSM7224S, allows for a flexible top-of-rack infrastructure. All 24 ports of 10 Gigabit SFP+ interfaces are Gigabit/10 Gigabit capable and deliver wired speed performance with ultra low latency. Four shared 10GBase-T interfaces broaden 10 Gigabit connectivity with auto-sensing RJ45. Local/distant stacking provides versatile 10 Gigabit deployment possibilities, such as Distributed (LACP) Aggregation for virtualized servers and storage.

• Enterprise-class L2+
  Combining superior resiliency, enterprise-class security, and non-blocking performance, the XSM7224S offers a full set of Layer 2 management features, as well as Layer 2+ (Layer 3 lite – IPv4 routing) with unsurpassed affordability. Together with VLAN routing, voice-class prioritization, and chassis-like stacking, the XSM7224S can be deployed as a data center Top-of-Rack switch, or closer to the core of small and medium businesses’ growing networks, as a distribution layer 10 Gigabit Ethernet aggregation switch.

• L3 Scalability
  The Layer 3 upgrade license XSM7224L unlocks the IPv4/IPv6 dynamic routing capabilities of the XSM7224S. Purposely built for Enterprise networks and core / aggregation layers of SMB networks, an L3 upgraded XSM7224S provides advanced routing protocols such as OSPF, VRRP, and multicast for converged applications.

• Data Center Availability
  The NETGEAR Stackable, Managed 10 Gigabit Switch XSM7224S comes with a removable power module for the main power supply with a second internal redundant power supply available as an option. Two removable fan trays increase the availability of the system, providing front-to-back cooling airflow for best compatibility with data center hot aisle / cold aisle airflow patterns. Like all NETGEAR ProSafe Managed Switches, the XSM7224S is backed by the NETGEAR ProSafe Lifetime Warranty.

  *Basic technical support provided for 90 days from date of purchase.
  **Contact Netgear for coverage, availability and terms and conditions

Specifications:

• Physical Interfaces:


• Front

  • 24 x 10 Gigabit SFP+ ports

  • All SFP+ ports support 1000 Mbps/10 GE speed

  • 4 shared RJ45 auto-sensing 10GBaseT ports

  • All RJ45 ports support 100 Mbps/1000 Mbps/10 GE speed

  • USB port (config/firmware files storage)

  • Serial RS-232 port for console

• Total

  • 24 x 10 Gigabit ports

• Processor/Memory

  • Multi-core processor: Cavium CN5230-750 @ 750 MHz ( four cores)

  • System runtime memory: 512 MB (DDR2 SDRAM)

  • Bootram: 32-bit 8 MB flash

  • Packet buffer memory: 16 Mb per switch

  • Code storage (flash): 128 MB

• Hardware Stacking

• • Stack height: 4 switches

  • 4 ports used per switch

  • All 24-port are stack-capable

  • Shared RJ45 10GBaseT ports are also stack-capable

  • Local stacking (copper) and distant stacking (fiber) possible mix and match

  • Stacking performance: 80 Gbps (full duplex)

• Performance Summary

• • Switching fabric: 480 Gbps

  • Throughput: 357 Mpps

  • Forwarding mode: Store and Forward

  • Latency (64-byte frames, 1 Gbps): <4.1μs

  • Latency (64-byte frames, 10 Gbps): < 1.59 μs

  • Addressing: 48-bit MAC address

  • Address database size: 32,000 MAC addresses

  • Number of VLANs: 1,024 (IEEE® 802.1Q)

  • Number of multicast groups filtered (L2): 1K

  • Number of trunks: 64 trunks, 8-port per trunk

  • Number of hardware queues for QoS: 8

  • Number of ACLs: 100 ACLs and 16,384 rules (supporting both ingress and egress ACL)

  • ARP table: 6,144

  • Number of static routes: 64

  • Number of IP interfaces: 128

  • Number of Spanning Tree: 32

  • Jumbo frame support: up to 9 K packet size

  • Acoustic noise (ANSI-S10.12): 44 dB @ 25° C ambient temperature

  • Heat dissipation: 666.42 Btu/hr

  • Mean time between failures (MTBF): 180,178 hours (~20.5 years) @ 25° C and 68,419 hours (~ 7.8 years) @ 55° C ambient temperature

• L3 Services – Routing

  • L2+ static routing (subnets, VLANs)

  • 64 static IP routes

  • 128 IP interfaces

  • IP Source Guard

• L3 Services - DHCP

  • DHCP server (1,024 clients)

  • DHCP L2 relay

  • DHCP Snooping (32K bindings)

• Services - Multicast

  • IGMP querier

• Services – Switching

  • MAC address table: 32,000

  • ARP cache size: 6,144

  • Proxy ARP

  • Dynamic ARP Inspection

• L2 Services – VLANs

  • IEEE 802.1Q static VLAN (up to 1,024 VLANs)

  • IEEE 802.1v Protocol VLAN

  • Port-based VLAN

  • MAC-based VLAN

  • IP subnet-based VLAN

  • Protocol-based VLAN

  • Voice VLAN (based on IP phones OUIs)

  • Guest VLAN with IEEE 802.1x

  • Auto-VLAN assignment via RADIUS

  • IEEE 802.1 Q-in-Q (Double-VLAN tagging)

  • GARP with GVRP/GMRP (automatic registration for membership in VLANs or in multicast groups)

  • Private groups

• L2 Services - Availability

  • IEEE 802.3ad Link Aggregation (Static or LACP) up to 64 trunks per stack and up to 8 ports per trunk

  • 802.1AX-2008

  • User selectable LAG hashing algorithm (seven) for Load-Balancing

  • IEEE 802.1D Spanning Tree Protocol (max 32 Spanning Trees)

  • IEEE 802.1w Rapid Spanning Tree

  • IEEE 802.1s Multiple Spanning Tree

• L2 Services – Multicast

  • IGMP v1, v2, v3 snooping support

  • IGMP querier mode support

  • Static multicast filtering (1,000 multicast groups)

• L2/L3/L4 Services – QoS

  • IPv4/IPv6 L2/L3/L4 QoS: MAC, IP, TCP/UDP ports

  • IEEE 802.1p Class of Service (CoS)

  • DiffServ QoS (RFC 2998)

  • Weighted round robin (WRR) queue technology

  • Strict priority queue technology

  • Ingress rate limit in 1 Kbps increments

  • Ingress and egress traffic

  • WRED (Weighted random early detection) queue management algorithm

• L2/L3/L4 Services – Security

  • IPv4/IPv6 Access control lists (ACL) L2/L3/L4: MAC, IP, TCP

  • MAC-based source/destination ACL

  • IP subnet-based source/destination ACL

  • Protocol-based source/destination ACL

  • ACL over VLAN

  • Dynamic ACL's

  • Time ACL

  • 100 ACL's and 16,384 rules

  • Ingress and egress ACL

  • Network storm protection including broadcast multicasts and unicast traffic

  • DoS configurable protection

  • End-to-end flow control (stand alone mode - not accross the stack)

  • Service-aware flow control

  • Data Center Mode flow control

  • ICMP throttling

  • Protected ports

  • Port locking

  • MAC filtering

  • Port security

  • DHCP snooping

  • IP Source Guard

  • Dynamic ARP inspection

  • RADIUS (RFC 2865)

  • RADIUS accounting (RFC 2866)

  • IEEE 802.1x port access authentication (RADIUS)

  • Network access control: Captive portal with internal authentication or external RADIUS authentication

  • Possible configuration of 10 captive portals

  • TACACS+

  • AAA IAS Users

  • LLPF (Link Layer Protocol Filtering)

  • IP Address Conflict Detection

• IEEE Network Protocols

  • IEEE 802.3 Ethernet

  • IEEE 802.3i 10BASE-T

  • IEEE 802.3u 100BASE-T

  • IEEE 802.3ab 1000BASE-T

  • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • IEEE 802.3ae 10-Gigabit Ethernet

  • IEEE 802.3ad Trunking (LACP)

  • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)

  • IEEE 802.1D Spanning Tree (STP)

  • IEEE 802.1s Multiple Spanning Tree (MSTP)

  • IEEE 802.1w Rapid Spanning Tree (RSTP)

  • IEEE 802.1p Quality of Service

  • IEEE 802.1Q VLAN tagging

  • IEEE 802.1v protocol-based VLAN

  • IEEE 802.1X Radius network access control

  • IEEE 802.3x flow control

  • IEEE 802.1Qbb Priority-Based Flow Control

• IETF RFC Standards – System Facilities

  • RFC 768 UDP

  • RFC 783 TFTP

  • RFC 791 IP

  • RFC 792 ICMP

  • RFC 793 TCP

  • RFC 826 Ethernet ARP

  • RFC 894 transmission of IP datagrams over Ethernet networks

  • RFC 896 congestion control in IP/TCP networks

  • RFC 951 BOOTP

  • RFC 1321 message-digest algorithm

  • RFC 1534 interoperation between BOOTP and DHCP

  • RFC 2131 DHCP client/server

  • RFC 2132 DHCP options & BOOTP vendor extensions

  • RFC 2030 Simple Network Time Protocol (SNTP) version 4 for IPv4, IPv6 and OSI

  • RFC 2865 RADIUS Client (both switch and management access)

  • RFC 2866 RADIUS Accounting

  • RFC 2868 RADIUS attributes for Tunnel Protocol support

  • RFC 2869 RADIUS Extensions

  • RFC2869bis RADIUS support for Extensible Authentication Protocol (EAP)

  • RFC 3164 The BSD Syslog Protocol

  • RFC 3580 802.1X RADIUS usage guidelines (VLAN assignment via RADIUS, dynamic VLAN)

• IETF RFC Standards – Switching MIB

  • RFC 1213 MIB-II

  • RFC 1493 Bridge MIB

  • RFC 1643 Ethernet-like MIB

  • RFC 2233 The Interfaces Group MIB using SMI v2

  • RFC 2674 VLAN MIB

  • RFC 2613 SMON MIB

  • RFC 2618 RADIUS Authentication Client MIB

  • RFC 2620 RADIUS Accounting MIB

  • RFC 2737 Entity MIB version 2

  • RFC 2819 RMON Groups 1,2,3 & 9

  • IEEE 802.1X MIB (IEEE 802.1-PAE-MIB 2004 Revision)

  • IEEE 802.1AB – LLDP MIB

  • ANSI/TIA 1057 – LLDP-MED MIB

  • Private Enterprise MIBs supporting switching features

• IETF RFC Standards – QOS

  • RFC 2474 definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 headers

  • RFC 2475 an architecture for differentiated services

  • RFC 2597 Assured Forwarding PHB Group

  • RFC 3246 An Expedited Forwarding PHB (Per-Hop Behavior)

  • RFC 3260 New Terminology and Clarifications for DiffServ

  • RFC 3289 Management Information Base for the Differentiated Services Architecture (read-only)

  • Private MIBs for full configuration of DiffServ, ACL and CoS functionality

• IETF RFC Standards – Management

  • RFC 854 Telnet

  • RFC 855 Telnet Option

  • RFC 1155 SMI v1

  • RFC 1157 SNMP

  • RFC 1212 Concise MIB Definitions

  • RFC 1867 HTML/2.0 Forms with file upload extensions

  • RFC 1901 Community-based SNMP v2

  • RFC 1908 Coexistence between SNMP v1 & SNMP v2

  • RFC 2068 HTTP/1.1 protocol as updated by draft-ietf-http-v11-spec-rev-03

  • RFC 2271 SNMP Framework MIB

  • RFC 2295 Transparent Content Negotiation

  • RFC 2296 Remote Variant Selection; RSVA/1.0 State Management “cookies” – draft-ietf-http-state-mgmt-05

  • RFC 2576 Coexistence between SNMP v1, v2 and v3

  • RFC 2578 SMI v2

  • RFC 2579 Textual Conventions for SMI v2

  • RFC 2580 Conformance statements for SMI v2

  • RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework

  • RFC 3411 An Architecture for Describing SNMP Management Frameworks

  • RFC 3412 Message Processing & Dispatching

  • RFC 3413 SNMP Applications

  • RFC 3414 User-based Security Model

  • RFC 3415 View-based Access Control Model

  • RFC 3416 Version 2 of SNMP Protocol Operations

  • RFC 3417 Transport Mappings

  • RFC 3418 Management Information Base(MIB) for the Simple Network Management Protocol (SNMP)

  • SSL 3.0 and TLS 1.0

    • RFC 2246 The TLS Protocol, Version 1.0

    • RFC 2818 HTTP over TLS

    • RFC 2346 AES Ciphersuites for Transport Layer Security

  • SSH 1.5 and 2.0

    • RFC 4253 SSH Transport Layer Protocol

    • RFC 4252 SSH Authentication Protocol

    • RFC 4254 SSH Connection Protocol

    • RFC 4251 SSH Protocol Architecture

    • RFC 4716 SECSH Public Key File Format

    • RFC 4419 Diffi e-Hellman Group Exchange for the SSH

    • Transport Layer Protocol

• Management

  • SNMP v1, v2c, v3 with multiple IP addresses

  • LLDP, LLDP-MED

  • Port mirroring support (many-to-one)

  • Flow-based mirroring

  • Syslog, Event log, Trap log, Email log event, ISDP

  • TFTP, SFTP, HTTP, SCP, or local USB flash for configuration files and firmware upgrades

  • Runtime image download (TFTP)

  • Port description

  • sFlow®

  • Web-based graphic user interface (Prosafe Control Center web GUI)

  • Command Line interface (Industrial Standard CLI: ISCLI)

  • IPv6 management

  • Cable test

  • SSLv3/TLSv1.0 Web security for the GUI

  • Secure Shell (SSHv1, v2) for CLI

  • Telnet sessions for management CPU (5 sessions)

  • Configurable management VLAN

  • Auto-install

  • Admin access control via RADIUS or TACACS+

• LEDS

  • Per port: Speed, link, activity

  • Per device: Power, fan status, stack ID,

  • Stack master

• Physical Specifications

  • Dimensions (w x d x h): 440 x 431 x 43 mm (17.3 x 17 x 1.7 in)

  • Weight: 6.3 kg (13.89 lb)

• Power Consumption

  • 195.2W maximum 100–240V AC, 50–60 Hz universal input (666.42 Btu/hr)

Environmental Specifications

• Operating:

  • Temperature: 32° to 122° F (0° to 50° C)

  • Humidity: 90% maximum relative humidity, non-condensing

  • Altitude: 10,000 ft (3,000 m) maximum

• Storage:

  • Temperature: – 4° to 158°F (–20° to 70°C)

  • Humidity: 95% maximum relative humidity, non-condensing

  • Altitude: 10,000 ft (3,000 m) maximum

• SafetyElectromagnetic Emissions and Immunity

  • CE mark, commercial

  • FCC Part 15 Class A, VCCI Class A

  • Class A EN 55022 (CISPR 22) Class A

  • Class A C-Tick

  • EN 50082-1

  • EN 55024

• Safety

  • CE mark, commercial

  • CSA certified (CSA 22.2 #950)

  • UL listed (UL 1950)/cUL IEC 950/EN 60950

• Package Contents

  • ProSafe® 24-port Stackable 10 Gigabit L2+ Managed Switch (XSM7224S)

  • Power cord

  • Rubber footpads for tabletop installation

  • Rubber caps for the SFP+ sockets

  • Rack-mounting kit

  • Null-modem serial cable (RS-232) with 9-pin connector

  • Resource CD

• Warranty

  • ProSafe Lifetime Warranty*

  • Next business day onsite hardware replacement support, 3 years (included)**

• Modules & Accessories

  • AGM731F 1000BASE-SX SFP GBIC

  • AGM732F 1000BASE-LX SFP GBIC

  • AGM734 1000BASE-T RJ45 SFP GBIC

  • AXC753 3m SFP+ to XFP Direct Attach Cable

  • AXC761 1m SFP+ Direct Attach Cable

  • AXC763 3m SFP+ Direct Attach Cable

  • AXM761 10GBASE-SR SFP+ GBIC

  • AXM762 10GBASE-LR SFP+ GBIC

  • AXM763 10GBASE-LRM SFP+ GBIC (Long Reach Multimode)

  • APS300W ProSafe Auxiliary Power Supply

  • AFT200 ProSafe Auxiliary Fan Tray

• Ordering Information

  • Americas: XSM7224S-100NAS

  • Europe: XSM7224S-100EUS

  • Asia: XSM7224S-100AJS

• ProSupport Service Packs

  • OnCall 24x7, Category 4: PMB0334

  • XPressHW, Category 4: PRR0334-100 (Australia only)

• Layer 3 Upgrade License

  • All regions
    *XSM7224L-10000S (See details Page 13)

• L3 Services – Routing

  • IPv6 Static Routing (64 IPv6 routes)

  • IPv4/IPv6 unicast dynamic routing

  • RIP v1/v2 (IPv4)

  • OSPF v2/v3 (IPv4)

  • OSPFv3 (IPv6)

  • Maximum OSPF LSAs (v2: 18536, v3: 9416)

  • OSPF equal-cost multi-path (4 - ECMP routes)

  • NSF OSPF Graceful Restart (RFC 3623)

  • VRRP 64 instances

  • IPv6 tunnel support

  • ICMPv6

• L3 Services – DHCP

  • IPv6 DHCP server (1,024 clients and 160 delegated prefix)

  • IPv6 DHCP/ BOOTP Relay

  • DNSv6 support

• L3 Services - Multicast

  • IPv4/IPv6 multicast streams routing between VLANs, subnets or different networks

  • IPv4/IPv6 PIM-SM (sparse mode)

  • IPv4/IPv6 PIM-DM (dense mode)

  • Distance Vector Multicast Routing Protocol (DVMRP)

  • 1,024 IP Multicast Groups

  • Neighbor discovery

• L2 Services – Multicast

  • IPv6: MLD v1, v2 snooping support

  • MLD proxy

• IETF RFC Standards – IPv4 Routing

  • RFC 1027 Using ARP to implement transparent subnet gateways (Proxy ARP)

  • RFC 1256 ICMP Router Discovery Messages

  • RFC 1765 OSPF Database Overflow

  • RFC 1812 Requirements for IP Version 4 Routers

  • RFC 2082 RIP-2 MD5 Authentication

  • RFC 2131 DHCP relay

  • RFC 2328 OSPF Version 2

  • RFC 2370 The OSPF Opaque LSA Option

  • RFC 2453 RIP v2

  • RFC 3046 DHCP Relay Agent Information Option

  • RFC 3101 The OSPF “Not So Stubby Area” (NSSA) Option

  • RFC 3137 OSPF Stub Router Advertisement

  • RFC 3623 NSF OSPF Graceful Restart (Nonstop forwarding)

  • RFC 3768 VRRP – Virtual Router Redundancy Protocol

  • Route Redistribution across RIP, OSPF and BGP

  • VLAN routing

• IETF RFC Standards – IPv4 Routing MIB

  • RFC 1724 RIP v2 MIB Extension\

  • RFC 1850 OSPF MIB

  • RFC 2096 IP Forwarding Table MIB

  • RFC 2787 VRRP MIB

  • Private Enterprise MIB supporting routing features

• IETF RFC Standards – Multicast

  • RFC 1112 Host Extensions for IP Multicasting

  • RFC 2236 Internet Group Management Protocol, Version 2

  • RFC 2365 Administratively Scoped IP Multicast

  • RFC 2710 Multicast Listener Discovery (MLD) for IPv6

  • RFC 3376 Internet Group Management Protocol, Version 3

  • RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6

  • RFC 3973 Protocol Independent Multicast - dense mode (PIM-DM)

  • RFC 4601 Protocol Independent Multicast - sparse mode (PIM-SM)

  • Draft-ietf-idmr-dvmrp-v3-10 Distance Vector Multicast Routing Protocol

  • Draft-ietf-magma-igmp-proxy-06 IGMP/MLD-based Multicast Forwarding (“IGMP/MLD Proxying”)

  • Draft-ietf-magma-igmpv3-and-routing-05 IGMPv3/MLDv2 and Multicast Routing Protocol Interaction

  • Draft-ietf-pim-sm-bsr-05 Bootstrap Router (BSR) Mechanism for PIM

• IETF RFC Standards – Multicast MIB

  • RFC 2932 IPv4 Multicast Routing MIB

  • RFC 5060 Protocol Independent Multicast MIB

  • Draft-ietf-idmr-dvmrp-mib-11 Distance-Vector Multicast Routing Protocol MIB

  • Draft-ietf-magma-mgmd-mib-05 Multicast Group Membership Discovery MIB

  • Draft-ietf-pim-bsr-mib-06 – PIM Bootstrap Router MIB

  • Private Enterprise MIB supporting Multicast features

• IETF RFC Standards – IPv6 Routing

  • RFC 1981 – Path MTU for IPv6

  • RFC 2460 – IPv6 Protocol Specification

  • RFC 2461 – Neighbor Discovery

  • RFC 2462 – Stateless Auto configuration

  • RFC 2464 – IPv6 over Ethernet

  • RFC 2711 – IPv6 Router Alert

  • RFC 2740 – OSPFv3

  • RFC 3056 – Connection of IPv6 Domains via IPv4 Clouds

  • RFC 3315 – DHCPv6 (stateless + relay)

  • RFC 3484 – Default Address Selection for IPv6

  • RFC 3493 – Basic Socket Interface for IPv6

  • RFC 3542 – Advanced Sockets API for IPv6

  • RFC 3587 – IPv6 Global Unicast Address Format

  • RFC 3736 – Stateless DHCPv6

  • RFC 4213 – Basic Transition Mechanisms for IPv6

  • RFC 4291 - Addressing Architecture for IPv6

  • RFC 4443 – ICMPv6

• IETF RFC Standards – IPv6 Routing MIB

  • RFC 2465 – IPv6 MIB

  • RFC 2466 – ICMPv6 MIB
