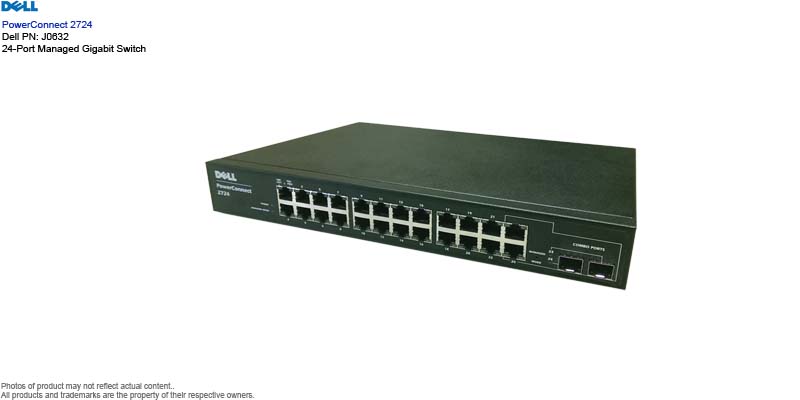

Network Switch
 Dell PowerConnect 2724
24-Port Gigabit Ethernet Web-Managed Switch
SW-DL-24-xxx

Links:

Features:

  • Description: 24-Port Managed Gigabit Network Switch (w/o rackmount bracket)
  • Brand: Dell
  • Model: PowerConnect 2724
  • Dell P/N: J0632
  • Condition: Used, with signs of cosmetic wear. Missing Rackmount brackets. Tested by browsing internet with all RJ45 Ethernet ports. Status of Fiber Ports unknown, seller has no related fiber equipment for testing. Cooling system of this unit is designed to deliver strong air flow thus with higher than normal noise level.
  • Packaging: Non-retail packaging, in unprinted box or plastic bag.

Highlights:

  • 24-port Gigabit Ethernet switch with high-performance server connectivity

  • Offers a switching capacity of up to 48 Gbps and a Forwarding Rate of up to 35.6 Mbps

  • IEEE 802.1Q port based tagging up to 64 VLANs

  • Provides switch access password protection (read-only and read-write access)

  • Supports Virtual Cable Diagnotics by Marvell™ to provide advanced troubleshooting capabilities

  • 2 SFP fiber combo ports provide support for 1000BASE-SX and 1000BASE-LX transceivers

  • Includes 1-Year NBD Advanced Exchange Service

Overview:

The Dell™ PowerConnect™ 2724 is ideal for workgroups that need Gigabit Ethernet to share large files or servers or where Web-managed capabilities are needed. With 24 Gigabit Ethernet ports, the switch delivers high-performance, reliable server connectivity. It provides automatic negotiation for speed, duplex, flow control and its auto-MDI/MDIX settings eliminate the need to manually configure ports. The incorporated Web-management feature provides up to 64 VLANs, four QoS priority queues, port mirroring, RMON port statistics and link aggregation. It is factory-configured as an unmanaged switch, but can be easily setup as a Web-managed switch with the push of a button. Additionally, the 2724 supports Virtual Cable Diagnotics by Marvell™ to provide advanced troubleshooting capabilities for your cable infrastructure. The switch comes with a comprehensive LED indicator panel to monitor the overall switching condition. It also includes 1-Year NBD Advanced Exchange Service.

Manufacturer Part# : 00001
Dell Part# : P2741NP

Specifications:

General

Device Type

Switch - 24 ports - managed
Device Type Switch - 24 ports - managed

Enclosure Type

Desktop - 1U

Ports

24 x 10/100/1000 + 2 x shared SFP

MAC Address Table Size

8K entries

Remote Management Protocol

RMON, HTTP

Features

Flow control, DHCP support, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)

Status Indicators

Link activity, port transmission speed, port duplex mode, power, link OK

Expansion / Connectivity

Interfaces

24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC)

Power

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Miscellaneous

Width

13 in

Depth

9.1 in

Height

1.7 in

Weight

6.6 lbs

Rack Mounting Kit

Included

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

113 °F

Humidity Range Operating

10 - 90%
