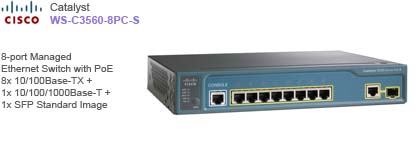

Cisco Gigabit Switch Catalyst 3560
Series
WS-C3560-8PC-S
8-port Managed Ethernet Switch with PoE
8x 10/100Base-TX + 1x 10/100/1000Base-T
+ 1x SFP Standard Image + 1x RJ45 Console
SW-CS-C3560-08PC-S
Product
Overview
The Cisco®
Catalyst®
3560 Series is a line of fixed-configuration, enterprise-class switches
that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE)
functionality in Fast Ethernet and Gigabit Ethernet configurations. The
Cisco Catalyst 3560 is an ideal access layer switch for small enterprise
LAN access or branch-office environments, combining both 10/100/1000 and
PoE configurations for maximum productivity and investment protection
while enabling the deployment of new applications such as IP telephony,
wireless access, video surveillance, building management systems, and
remote video kiosks. Customers can deploy networkwide intelligent
services-such as advanced quality of service (QoS), rate limiting,
access control lists (ACLs), multicast management, and high-performance
IP routing-while maintaining the simplicity of traditional LAN
switching. Available for the Cisco Catalyst 3560 Series at no charge,
the Cisco Network Assistant is a centralized management application that
simplifies the administration tasks for Cisco switches, routers, and
wireless access points. Cisco Network Assistant provides configuration
wizards that greatly simplify the implementation of converged networks
and intelligent network services.
Main Features
-
Manufacturer: Cisco Systems, Inc
-
Manufacturer Part Number: WS-C3560-8PC-S
-
Manufacturer Website Address: www.cisco.com
-
Product Name: Catalyst 3560-8PC Managed Ethernet Switch with PoE
-
Marketing Information: The Cisco Catalyst 3560-8PC is a line of
fixed-configuration, enterprise-class switch, include IEEE
802.3af and Cisco pre-standard Power over Ethernet (PoE)
functionality in Fast Ethernet and Gigabit Ethernet
configurations. Ideal access layer switch for small enterprise
LAN access or branch-office environments. Combining both
10/100/1000 and PoE configurations for maximum productivity and
investment protection, 3560-8PC help you deploy new applications
such as IP telephony, wireless access, video surveillance,
building management systems, and remote video kiosks.
-
Product Type: Ethernet Switch
-
Number of Ports: 8
-
Fast Ethernet Port: Yes
-
Interfaces/Ports: 8 x RJ-45 10/100Base-TX LAN, 1 x RJ-45
10/100/1000Base-T LAN
-
Expansion Slots: (1 Total) SFP Shared
General Information
> Manufacturer:
Cisco Systems, Inc
> Manufacturer Part
Number:
WS-C3560-8PC-S
> Manufacturer
Website Address:
www.cisco.com
> Brand Name:
Cisco
> Product Line:
Catalyst
> Product Series:
3560
> Product Model:
3560-8PC
> Product Name:
Catalyst 3560-8PC Managed Ethernet
Switch with PoE
Marketing Information:
The Cisco Catalyst 3560-8PC is a line of
fixed-configuration, enterprise-class switch, include IEEE
802.3af and Cisco pre-standard Power over Ethernet (PoE)
functionality in Fast Ethernet and Gigabit Ethernet
configurations. Ideal access layer switch for small
enterprise LAN access or branch-office environments.
Combining both 10/100/1000 and PoE configurations for
maximum productivity and investment protection, 3560-8PC
help you deploy new applications such as IP telephony,
wireless access, video surveillance, building management
systems, and remote video kiosks.
> Product Type:
Ethernet Switch
>
Interfaces/Ports:
Number of Ports:
8
Fast Ethernet Port:
Yes
Interfaces/Ports:
8 x RJ-45 10/100Base-TX
LAN, 1 x RJ-45 10/100/1000Base-T LAN
> I/O
Expansions
Number of Expansion Slots: 1
Expansion Slots: (1 Total) SFP Shared
> Network & Communication:
Layer Support: 2
> Miscellaneous:
IP
Base license (formerly SMI) installed
IEEE 802.3af and Cisco
prestandard Power over Ethernet
Basic RIP and static
routing, upgradable to full dynamic IP routing
Enterprise-class
intelligent services delivered to the network edge
|
