Ethernet Switch

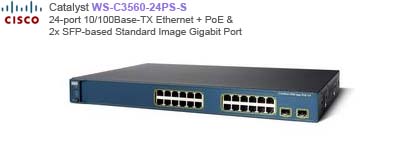

Cisco Gigabit Switch Catalyst 3560
Series
24x 10/100Base-TX + PoE & 2x SFP Standard Image
P/N: WS-C3560-24PS-S (1U Rack Mountable)
SW-CS-C3560-24PS-S
Product
Overview
The Cisco®
Catalyst®
3560 Series is a line of fixed-configuration, enterprise-class switches
that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE)
functionality in Fast Ethernet and Gigabit Ethernet configurations. The
Cisco Catalyst 3560 is an ideal access layer switch for small enterprise
LAN access or branch-office environments, combining both 10/100/1000 and
PoE configurations for maximum productivity and investment protection
while enabling the deployment of new applications such as IP telephony,
wireless access, video surveillance, building management systems, and
remote video kiosks. Customers can deploy networkwide intelligent
services-such as advanced quality of service (QoS), rate limiting,
access control lists (ACLs), multicast management, and high-performance
IP routing-while maintaining the simplicity of traditional LAN
switching. Available for the Cisco Catalyst 3560 Series at no charge,
the Cisco Network Assistant is a centralized management application that
simplifies the administration tasks for Cisco switches, routers, and
wireless access points. Cisco Network Assistant provides configuration
wizards that greatly simplify the implementation of converged networks
and intelligent network services.
Main Features
-
Manufacturer: Cisco Systems, Inc
-
Manufacturer Part Number:
WS-C3560-24PS-S
-
Manufacturer Website Address:
www.cisco.com
-
Product Name: Catalyst 3560-24PS
Ethernet Switch
-
Marketing Information: The Cisco
Catalyst 3560 Series switches is a line of fixed configuration,
enterprise-class, IEEE 802.3af and Cisco prestandard Power over
Ethernet (PoE) switches in Fast Ethernet configurations that
provide availability, security, and quality of service (QoS) to
enhance network operations. The Catalyst 3560 is an ideal access
layer switch for small enterprise wiring closets or branch
office environments that are using their LAN infrastructure for
the deployment of new products and applications such as IP
telephones, wireless access points, video surveillance, building
management systems, and remote video kiosks. Customers can
deploy network-wide intelligent services, such as advanced QoS,
rate limiting, access control lists, multicast management, and
high-performance IP routing-while maintaining the simplicity of
traditional LAN switching. Embedded in the Catalyst 3560 is the
Cisco Cluster Management Suite (CMS) Software, which allows
users to simultaneously configure and troubleshoot multiple
Cisco Catalyst desktop switches using a standard Web browser.
Cisco CMS Software provides configuration wizards that greatly
simply the implementation of converged networks and intelligent
network services.
-
Product Type: Ethernet Switch
-
Number of Ports: 24
-
Fast Ethernet Port: Yes
-
Interfaces/Ports: 24 x RJ-45
10/100Base-TX LAN, 1 x RJ-45 Console Management
-
Expansion Slots: (2 Total) SFP
(mini-GBIC)
-
Input Voltage: 110V AC, 220V AC
-
Input Voltage Range: 100V AC to
240V AC
-
Dimensions: 1.73" Height x 17.5"
Width x 11.81" Depth
-
Weight: 11.3 lb
-
Package Contents: Catalyst 3560
Switch , Catalyst 3560 Switch Hardware Installation Guide ,
Where to Find the Catalyst 3560 Documentation flyer , AC power
cord (AC-powered switches) , One RJ-45-to-DB-9 adapter cable ,
Mounting kit containing:
, Four
rubber feet for mounting the switch on a table , Two 19-inch
rack mounting brackets (also used for wall mounting) , Six
Phillips flat-head screws for attaching the brackets to the
switch , Four Phillips machine screws for attaching the
brackets to a rack , One cable guide and one black Phillips
machine screw for attaching the cable guide to one of the
mounting brackets , One redundant power system (RPS)
connector cover (for wall mounting) , Two Phillips pan-head
screws (for attaching the RPS cover) , Four Phillips
truss-head screws (for wall-mounting brackets)
-
Standard Warranty: Lifetime Limited
-
Warranty: by Cisco
General Information
> Manufacturer:
Cisco Systems, Inc
>
Manufacturer Part
Number:
WS-C3560-24PS-S
>
Manufacturer
Website Address:
www.cisco.com
>
Brand Name:
Cisco
> Product Line:
Catalyst
>
Product Series:
3560
>
Product Name:
Catalyst 3560-24PS Ethernet
Switch
Marketing Information:
The Cisco Catalyst 3560
Series switches is a line of fixed configuration,
enterprise-class, IEEE 802.3af and Cisco prestandard Power
over Ethernet (PoE) switches in Fast Ethernet configurations
that provide availability, security, and quality of service
(QoS) to enhance network operations. The Catalyst 3560 is an
ideal access layer switch for small enterprise wiring
closets or branch office environments that are using their
LAN infrastructure for the deployment of new products and
applications such as IP telephones, wireless access points,
video surveillance, building management systems, and remote
video kiosks. Customers can deploy network-wide intelligent
services, such as advanced QoS, rate limiting, access
control lists, multicast management, and high-performance IP
routing-while maintaining the simplicity of traditional LAN
switching. Embedded in the Catalyst 3560 is the Cisco
Cluster Management Suite (CMS) Software, which allows users
to simultaneously configure and troubleshoot multiple Cisco
Catalyst desktop switches using a standard Web browser.
Cisco CMS Software provides configuration wizards that
greatly simply the implementation of converged networks and
intelligent network services.
>
Product Type:
Ethernet Switch
>
Interfaces/Ports:
Number of Ports:
24
Fast Ethernet Port:
Yes
Interfaces/Ports:
24 x RJ-45 10/100Base-TX
LAN, 1 x RJ-45 Console
Management
> Media & Performance
Connectivity Media:
Category 3 UPT 10Base-T
Category 4 UPT 10Base-T
Category 5 UPT 10/100Base-TX
Distance Support: 328ft
Performance:
8.8Gbps Switching Fabric
4.4Gbps Forwarding Bandwith At
Layer 2 and Layer 4
6.6Mbps Forwarding Rate For
64-byte Packet
>
I/O
Expansions
Number of Expansion Slots: 2
Expansion Slots: (2 Total) SFP
(mini-GBIC) Shared
Modules: Not Included
> Network & Communication:
Flow Control: IEEE 802.3x (Full-Duplex)
Layer Support: 2 to 4
Address Table: 12K MAC Address
> Management & Protocols
Manageable: Yes
Management:
Cisco IOS CLI support
Cisco
Intelligent Power Management
Switching Database Manager templates
Remote
Switch Port Analyzer (RSPAN)
All nine RMON groups are supported
Domain
Name System (DNS)
Network
Timing Protocol (NTP) provides an accurate and
consistent timestamp to all intranet switches
Cisco
CMS Software
Protocols:
TCP/IP
IGMP
VTP
STP
FTP
CDP
PVST+
SMTP
SAP
DTP
PAgP
LACP
PVRST+
RSTP
UDLD
RIP v1.0
RIP v2.0
DVMRP
ARP
MSTP
IGMP v3
CGMP
TFTP
NTP
> Security Features:
IEEE 802.1x allows dynamic, port-based security,
providing user authentication
Up to 1024 VLANs per
switch or stack and up to 128 spanning-tree
instances per switch are supported
Four thousand VLAN IDs are supported
Port-based ACLs (PACLs)
Unicast MAC filtering prevents the forwarding of
any type of packet with a matching MAC address
SSHv2, Kerberos, and SNMPv3
TACACS+ and RADIUS authentication
Multilevel security on console access prevents
unauthorized users from altering the switch
configuration
Spanning-Tree Root Guard (STRG)
IGMP filtering
Cisco CMS Software security wizards
One thousand access control entries (ACEs) are
supported
> Memory:
Standard Memory: 128MB
Flash Memory: 16MB
> Software:
Operating System: Standard Mulitlayer Software
Image (SMI) installed
> Control / Indicators
Status Indicators
Per-port status LEDs:
Link integrity
Disabled
Activity
Speed
Full-duplex
indications
Power over
Ethernet applied
Power over
Ethernet disabled indications
System-status
LEDs:
System
RPS
Link status
Link duplex
Link speed
Power over Ethernet indications
> Reliability:
MTBF: 224100 Hours
> Power Description:
Input Voltage Range:
110V AC to 240V AC
Input Current:
5.5A @ 100V AC
2.8A @ 240V AC
Power Consumption:
485W Maximum
370W Maximum PoE
Power Source: Power Supply
Redundant Power Supply: Yes
> Environmental Conditions:
Temperature:
32 to 113 Operating, -13 to 158 Storage
Humidity:
10% to 85%
Non-condensing Relative Humidity Operating
Altitude:
10000 ft Maximum
Operating, 15000 ft Maximum Storage
Thermal Dissipation:
393 BTU/h @ 115W
Maximum
> Physical Characteristics:
Dimension:
1.73" Height x 17.5"
Width x 11.81" Depth
Weight: 11.3 lb
> Shipping Information:
Shipping Dimension: 9.5" Height x 17" Width x 23"
Depth
Case Pack Qty: 1
Shipping Weight: 16.6 lb
> Miscellaneous:
Package Contents:
Catalyst 3560 Switch
Catalyst 3560 Switch
Hardware Installation Guide
Where to Find the Catalyst 3560 Documentation flyer
AC
power cord (AC-powered switches)
One
RJ-45-to-DB-9 adapter cable
Mounting kit containing:
Four rubber feet for
mounting the switch on a table
Two
19-inch rack mounting brackets (also used for wall
mounting)
Six
Phillips flat-head screws for attaching the brackets
to the switch
Four
Phillips machine screws for attaching the brackets
to a rack
One
cable guide and one black Phillips machine screw for
attaching the cable guide to one of the mounting
brackets
One
redundant power system (RPS) connector cover (for
wall mounting)
Two
Phillips pan-head screws (for attaching the RPS
cover)
Four Phillips truss-head screws (for wall-mounting
brackets)
> Additional Information:
Configurable up to 11,000 unicast routes
Configurable up to 1000 IGMP groups and multicast
routes
Configurable maximum transmission unit (MTU)
up to 9018 bytes (Jumbo frames)
for bridging on Gigabit Ethernet ports
up to 1546 bytes for bridging
of Multiprotocol Label Switching (MPLS) tagged
frames on 10/100 ports
Configurable up to 11,000 unicast routes
Power Rating: 0.485KVA
Power over Ethernet (PoE):
Maximum power supplied per
port: 15.4W
Acoustic Noise:
ISO 7779: bystander position
operating to an ambient temperature of 25
> Certifications & Standards:
IEEE 802.1s
IEEE
802.1w
IEEE
802.1x
IEEE
802.3ad
IEEE
802.3af
IEEE
802.3x: full duplex on 10BASE-T, 100BASE-TX, and
1000BASE-T ports
IEEE
802.1D: Spanning-Tree Protocol
IEEE
802.1p: CoS Prioritization
IEEE
802.1Q: VLAN
IEEE
802.3: 10BASE-T specification
IEEE
802.3u: 100BASE-TX specification
IEEE
802.3ab: 1000BASE-T specification
IEEE
802.3z: 1000BASE-X specification
1000BASE-X (SFP)
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
1000BASE-CWDM SFP 1470 nm
1000BASE-CWDM SFP 1490 nm
1000BASE-CWDM SFP 1510 nm
1000BASE-CWDM SFP 1530 nm
1000BASE-CWDM SFP 1550 nm
1000BASE-CWDM SFP 1570 nm
1000BASE-CWDM SFP 1590 nm
1000BASE-CWDM SFP 1610 nm
RMON
I and II standards
SNMPv1, SNMPv2c, SNMPv3
> Management:
BRIDGE-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONFIG-MAN-MIB
CISCO-ENTITY-FRU-CONTROL-MIB
CISCO-ENVMON-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-HSRP-MIB
CISCO-HSRP-EXT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TCP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IF-MIB IGMP-MIB
IPMROUTE-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
OSPF-MIB (RFC 1253)
PIM-MIB
RFC1213-MIB
RFC1253-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
> Safety Certifications:
UL to UL 60950, Third Edition
C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
TUV/GS to EN 60950:2000
CB to IEC 60950 with all country deviations
NOM to NOM-019-SCFI
CE Marking
> Electromagnetic Emissions Certifications:
FCC Part 15 Class A
EN 55022: 1998 (CISPR22)
EN 55024: 1998 (CISPR24)
VCCI Class A
AS/NZS 3548 Class A
CE
CNS 13438 Class A
MIC
> Telco:
CLEI code
> Warranty:
by Cisco
|
