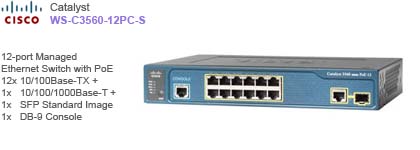

Cisco Gigabit Switch Catalyst 3560 Series
WS-C3560-12PC-S
12-port Managed Ethernet Switch with PoE
12x 10/100Base-TX + 1x 10/100/1000Base-T
+ 1x SFP Standard Image + 1x DB-9 Console
SW-CS-C3560-12PC-S

Product Overview

The Cisco® Catalyst® 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services.

 Main Features
  • Manufacturer: Cisco Systems, Inc
  • Manufacturer Part Number: WS-C3560-12PC-S
  • Manufacturer Website Address: www.cisco.com
  • Product Name: Catalyst 3560-8PC Managed Ethernet Switch with PoE
  • Marketing Information: The Cisco Catalyst 3560-12PC-S is a fixed-configuration, enterprise-class switch that includes IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560-12PC-S is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching.
  • Product Type: Ethernet Switch
  • Number of Ports: 13
  • Fast Ethernet Port: Yes
  • Interfaces/Ports: 12 x RJ-45 10/100Base-TX LAN, 1 x RJ-45 10/100/1000Base-T LAN, 1x DB-9 Console Management
  • Expansion Slots: (1 Total) SFP (mini-GBIC) Shared
  • Power Over Ethernet: Yes
  • Input Voltage: 110V AC, 220V AC
  • Input Voltage Range: 100V AC to 240V AC
  • Form Factor: Rack-mountable
  • Dimensions: 1.73" Height x 10.6" Width x 9.1" Depth
  • Weight: 5 lb
  • Warranty: by Cisco

General Information
> Manufacturer: Cisco Systems, Inc
> Manufacturer Part Number: WS-C3560-12PC-S
> Manufacturer Website Address: www.cisco.com
> Brand Name: Cisco
> Product Line: Catalyst
> Product Series: 3560
> Product Model: 3560-12PC
> Product Name: Catalyst 3560-12PC Managed Ethernet Switch with PoE

Marketing Information:
The Cisco Cisco Catalyst 3560-12PC-S is a fixed-configuration, enterprise-class switch that includes IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560-12PC-S is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching.
> Product Type: Ethernet Switch
> Interfaces/Ports:
   Number of Ports: 13
   Fast Ethernet Port: Yes
   Gigabit Ethernet Port: Yes
   Interfaces/Ports: 12 x RJ-45 10/100Base-TX LAN, 1 x RJ-45 10/100/1000Base-T LAN, 1x DB-9 Console Management
> Media & Performance
   Forwarding / Filtering Rate: 2.2Mpps
   Switching Throughput: 32Gbps
> I/O Expansions
   Number of Expansion Slots: 1
   Expansion Slots: (1 Total) SFP (mini-GBIC) Shared
> Network & Communication:
   Layer Support: 2 to 3
> Management & Protocols
   Manageable: Yes
   Management:
      CLI
      Telnet
      DCHP
      Syslog
      RMON
      IEEE 802.1P QoS
      SNMP v1, v2c, v3
      IEEE 802.1Q VLAN
      Web-based Management
      Cisco Works Lan Management Solution
> Memory:
   Standard Memory: 128MB
   Memory Technology: DRAM
> Power Description:
   Power Over Ethernet: Yes
   Input Voltage: 110V AC, 220V AC
   Input Voltage Range: 100V AC to 240v ac
   Power Source: Power Supply
> Physical Characteristics:
   Form Factor: Compact
   Dimension: 1.73" Height x 10.6" Width x 9.1" Depth
   Weight: 5 lb
> Miscellaneous:
   IP Base license (formerly SMI) installed
   Basic RIP and static routing
> Warranty: by Cisco
