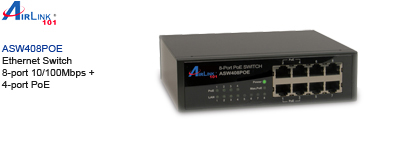

Ethernet Switch
8-port 10/100Mbps + 4-port PoE
Airlink ASW408POE
SW-AR-08-ASW408POE
Equip your home or
small office with the capability of a Power over Ethernet (PoE)
network! The ASW408POE 8-Port 10/100Mbps Switch with 4-Port PoE
allows you to send data and power over the same Cat5 cables so
you no longer have to worry about finding a power plug for the
PoE devices. The 8-port switch make file-sharing and data
transfer faster then ever. This low cost solution is perfect for
your home or small office use!
Features:
-
8
Auto-Negotiation 10/100Mbps RJ45 Ports with 4 Power over
Ethernet Ports (port 1~4)
-
Metal case, ultra-compact design
-
Over current and short-circuit protection
-
Auto MDI/MDIX, no cross-over cable or up-link port is needed
-
Store-and-Forward switching scheme capability to support
rate adaptation and ensure data integrity
-
Up
to 1K MAC addresses entries per device, self-learning, and
table aging
-
768K bits packet buffer memory
-
Plug & Play
-
Supports IEEE 802.3x flow control for full-duplex mode ports
-
Supports Back-pressure flow control for half-duplex mode
ports
Specifications:
|
Standards |
IEEE
802.3 10BASE-T, IEEE 802.3u 100BASE-TX,
IEEE 802.3x Flow Control, IEEE 802.3af |
|
Network Media |
10BASE-T Ethernet: UTP Cat. 3,4,5
100BASE-TX Fast Ethernet: UTP Cat.5
PoE port: UTP Cat. 5 |
|
Protocol |
CSMA/CD |
|
Topology |
Star |
|
Number
of Ports |
- 4 x
10/100Mbps Auto-negotiation, Auto-MDIX PoE ports
(port 1 ~ 4)
- 4 x 10/100Mbps Auto-negotiation, Auto-MDIX
Fast Ethernet ports (port 5 ~ 8) |
|
Memory |
768K
bits per device |
|
Filtering Address Table |
1K
entries per device |
|
PoE
Budget |
Up to
15.4W max. per PoE port, 30W total |
|
Diagnostic LEDs |
Per
Unit : Power, Power MAX
Per Fast Ethernet port : Link/Activity
Per PoE port: PoE Status, Link/Activity
|
|
Dimensions |
171 x
98 x 29mm (L x W x H) |
|
Power
Adapter |
48V /
0.8A |
|
Environment |
Operating Temperature: 0°C~ 40°C (32°F ~ 122°F)
Operating Humidity: Operating: 10~90%
(non-condensing) |
|
Certification |
FCC,
CE |
|
Warranty |
1-year
limited warranty |
* Power savings
may vary depending on products used. Maximum power saving up
to 46% when compared with Airlink101® AGIGA8SW.
* Actual
throughput will vary. Specifications are subject to change
without notice. All products and trademarks are the property
of their respective owners. Photos of product may not
reflect actual content. Copyright ©2011 Airlink101®
|
