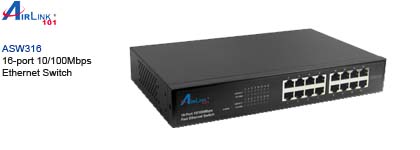

Ethernet Switch
16-port 10/100Mbps
Airlink ASW316
SW-AR-08-ASW316
Equip your small
office with the power of a high-speed network! The ASW316
16-port 10/100 Switch efficiently handles high bandwidth between
multiple computers, making file-sharing and data transfer faster
than ever. Able to accommodate 100Mbps of data transfer, the
ASW316 can even extend the power of fast Ethernet throughout
your network!
Features:
-
Compliant with the IEEE802.3 10Base-T Ethernet, IEEE802.3u
100Base-TX
-
16
x 10/100Mbps Auto-Negotiation, Auto MDI/MDI-X ports
-
Green Ethernet Technology effectively reduces power
consumption
-
Support up to 8K MAC address
-
Up
to 1.25M bits packet buffer
-
Supports Store & Forward architecture and performs
forwarding and filtering
-
IEEE802.3x flow control for Full-duplex
-
Back Pressure function for Half-duplex operation
-
Supports to handle up to 1552 bytes packet
-
LED indicators for simple diagnostics and management
-
Build-in universal power
Specifications:
|
Standards |
IEEE
802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE
802.3x Flow Control |
|
Ports |
16 x
10/100Mbps Auto-MDI/MDI-X RJ45 connector |
|
Data
Transfer Rate |
10/100Mbps (Half-Duplex)
20/200Mbps (Full-Duplex) |
|
Forwarding Method |
Store
and forward |
|
MAC
Address |
8K |
|
Buffer
Memory |
1.25M
Bits |
|
LED
Indicators |
Per
Unit: Power
Link/ACT (Per Port)
Solid Green: Link
Blinking Green: Activity
Speed (Per Port) |
|
Access
Method |
CSMA/CD |
|
Power |
100~240V AC, 50~60Hz |
|
Dimensions |
283 x
173 x 43mm (L x W x H) |
|
Certification |
FCC
Class A, CE |
|
Warranty |
1-year
limited warranty |
* Power savings
may vary depending on products used. Maximum power saving up
to 46% when compared with Airlink101® AGIGA8SW.
* Actual
throughput will vary. Specifications are subject to change
without notice. All products and trademarks are the property
of their respective owners. Photos of product may not
reflect actual content. Copyright ©2011 Airlink101®
|
