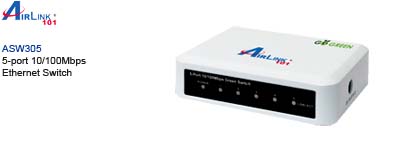

Ethernet Switch
5-port 10/100Mbps Airlink ASW305


  • Green EEE (Energy Efficient Ethernet) power-saving technology

  • Power savings by number of connected ports and link status

  • Power saving by cable length

  • 5 x 10/100Mbps Auto MDI/MDI-X Gigabit Ethernet port

  • Full/Half duplex transfer mode support for 10/100/1000Mbps

  • Store-and-Forward switching method

  • Non Head-Of-Line blocking (HOL) forwarding

  • Supports 8K MAC address table

  • Supports Jumbo Frame at wire speed

  • Extensive front-panel diagnostic LEDs

  • Support IEEE802.3x full/half duplex flow control and back pressure

  • Support Wake-on-LAN (WOL)

  • Wall-Mountable design


Standards Compliance IEEE 802.3 10 Base-T
IEEE 802.3u 100 Base-TX
IEEE 802.3az
IEEE 802.3x
Connectors 5 x 10/100/1000Mbps Auto-MDI/MDI-X port with RJ-45 connector
Forwarding Method Store and Forward
Data Transfer Rates Ethernet: 10Mbps (half duplex)
Ethernet: 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex)
Fast Ethernet: 200Mbps (full duplex)
MAC Address Size 2K
Jumbo Frame 2047 Byte jumbo packet length forwarding at wire speed
LED Indicator Per Unit: Power
Link/ACT (Per Port)
Solid Green: Link
Blinking Green: Activity
Power Adapter DC 8V / 0.6A
Dimension 100 x 75 x 25mm (L x W x H)
Weight 90g (3 oz)
Temperature 0 ~ 40C (32 ~ 104F)
Humidity 10% ~ 90% non condensing
Certifications FCC, CE
Warranty 1-year limited warranty

* Power savings may vary depending on products used. Maximum power saving up to 46% when compared with Airlink101 AGIGA8SW.

* Actual throughput will vary. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Photos of product may not reflect actual content. Copyright 2011 Airlink101
