Ethernet Switch
8-port Gigabit Airlink AGSW801

Go green! 8-port 10/100/1000Mbps Green Switch can reduce power usage up to 46%.* It efficiently handles high bandwidth between multiple computers, making file-sharing and data transfer faster than ever. Able to accommodate 1000Mbps of data transfer, the AGSW801 can even extend the power of Gigabit Ethernet throughout your network!


  • Green Ethernet power-saving technology reduces up to 46% of power consumption*

  • 8 x 10/100/1000Mbps Auto MDI/MDI-X Gigabit Ethernet port

  • Full/Half duplex transfer mode support for 10/100/1000Mbps

  • Store-and-Forward switching method

  • Supports 4K MAC address table

  • Supports 1M bits RAM for data buffering

  • Supports Jumbo Frame in all speeds

  • Extensive front-panel diagnostic LEDs

  • IEEE 802.3x flow control for full-duplex

  • Back pressure flow control for half-duplex


Standards Compliance IEEE 802.3 10 Base-T, IEEE 802.3u 100 Base-TX,
IEEE 802.3ab 1000 Base-T, IEEE 802.3x Flow Control
Connectors 8 x 10/100/1000Mbps Auto-MDI/MDI-X port with RJ-45 connector
Packet Forwarding / Filtering Rate 14,880 pps for 10M
148,809 pps for 100M
1,488,095 pps for 1000M
Forwarding Method Store and forward
Topology Star
Data Transfer Rate Support Half/Full-Duplex operations at 10/100/1000Mbps
Buffer Memory 1Mbits
MAC Address Size 4K
Jumbo Frame 12KB (wire speed forward at 9KB), supports all 3 speeds
LED Indicators Power (Per Unit)
Speed (Per Port)
Link/ACT (Per Port)
Power Adapter DC 12V / 1A, AC 100~240V
Power Consumption 6.2 watts maximum
Dimension 174 x 103 x 30mm (L x W x H)
Temperature Operating: 0 ~ 55 C (32 ~ 131F)
Humidity 0% ~ 90% non condensing
Certifications FCC, CE
Warranty 1-year limited warranty

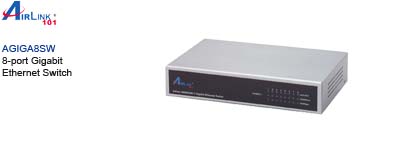

* Power savings may vary depending on products used. Maximum power saving up to 46% when compared with Airlink101 AGIGA8SW.

* Actual throughput will vary. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Photos of product may not reflect actual content. Copyright 2011 Airlink101
