Ethernet Switch

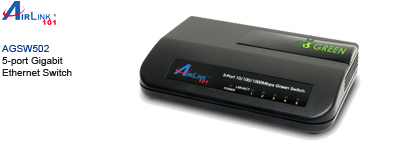

5-port Gigabit Airlink AGSW502
SW-AR-05-AGSW502
Go green! 5-port 10/100/1000Mbps
Green Switch can reduce power usage. It efficiently handles high
bandwidth between multiple computers, making file-sharing and data
transfer faster than ever. Able to accommodate 1000Mbps of data
transfer, the AGSW502 can even extend the power of Gigabit Ethernet
throughout your network!
Features:
-
Comply
with the IEEE802.3 Ethernet, IEEE802.3u and IEEE802.3ab
standards
-
Provide Store-and-Forward architecture and full wire speed
filtering and forwarding rates
-
Automatic source address learning and aging
-
All
UTP Ports support Auto-MDI/MDI-X, no cross-over cable needed
-
All
UTP Ports support full/half duplex modes and auto-negotiation
-
Support flow control: back pressure for half-duplex mode, IEEE
802.3x for full-duplex mode
-
Supports Jumbo Frame in all three speeds (10/100/1000Mbps)
-
Extensive front-panel diagnostic LEDs
-
Compact size designed.
Specifications:
Standards Compliance |
IEEE
802.3 10 Base-T
IEEE 802.3u 100 Base-TX
IEEE 802.3ab 1000 Base-T |
Connectors |
5 x
10/100/1000Mbps Auto-MDI/MDI-X port with RJ-45
connector |
Packet
Forwarding / Filtering Rate |
14,880
pps for 10M
148,809 pps for 100M
1,488,095 pps for 1000M |
Forwarding Method |
Store
and forward |
Data
Transfer Rate |
Support Half/Full-Duplex operations at
10/100/1000Mbps |
Buffer
Memory |
1M
bits |
MAC
Address Size |
2K |
Jumbo
Frame |
Receiving: up to 12KB
Wire speed forwarding: up to 9KB
Supports all three speeds |
LED
Indicators |
Per Unit: Power
Link/ACT (Per Port)
Solid: Link
Blinking: Activity
Yellow: 10/100/1000Mbps
Green: 10/100Mbps |
Power
Adapter |
DC 12V
/ 1A |
Dimension |
125 x
82 x 25mm (L x W x H) |
Temperature |
Operating: 10 ~ 40°C (50 ~ 104°F)
Storage: -20 ~ 60°C (-4 ~ 140°F) |
Humidity |
10% ~
90% non condensing |
Certifications |
FCC,
CE |
Warranty |
1-year
limited warranty |
* Power savings
may vary depending on products used. Maximum power saving up
to 46% when compared with Airlink101® AGIGA8SW.
* Actual
throughput will vary. Specifications are subject to change
without notice. All products and trademarks are the property
of their respective owners. Photos of product may not
reflect actual content. Copyright ©2011 Airlink101®
|
