Ethernet Switch

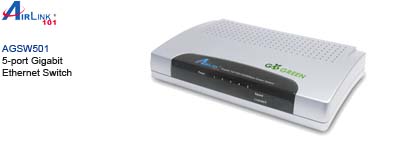

5-port Gigabit Airlink AGSW501
SW-AR-05-AGSW501
Go green! 5-port 10/100/1000Mbps
Green Switch can reduce power usage up to 50%.* It efficiently handles
high bandwidth between multiple computers, making file-sharing and data
transfer faster than ever. Able to accommodate 1000Mbps of data
transfer, the AGSW501 can even extend the power of Gigabit Ethernet
throughout your network!
Features:
-
Green
Ethernet power-saving technology reduces up to 50% of power
consumption*
-
5 x
10/100/1000Mbps Auto MDI/MDI-X Gigabit Ethernet port
-
Full/Half duplex transfer mode support for 10/100/1000Mbps
-
Store-and-Forward switching method
-
Support four priority queues per port
-
Supports 1K MAC address table
-
Supports 99KB RAM for data buffering
-
Extensive front-panel diagnostic LEDs
-
IEEE
802.3x flow control for full-duplex
-
Back
pressure flow control for half-duplex
Specifications:
|
Standards Compliance |
IEEE
802.3 10 Base-T, IEEE 802.3u 100 Base-TX,
IEEE 802.3ab 1000 Base-T, IEEE 802.3x Flow
Control |
|
Connectors |
5 x
10/100/1000Mbps Auto-MDI/MDI-X port with RJ-45
connector |
|
Packet
Forwarding / Filtering Rate |
14,880
pps for 10M
148,809 pps for 100M
1,488,095 pps for 1000M |
|
Forwarding Method |
Store
and forward |
|
Topology |
Star |
|
Data
Transfer Rate |
Support Half/Full-Duplex operations at
10/100Mbps
Support Full-Duplex operations at 1000Mbps |
|
Buffer
Memory |
99KB |
|
MAC
Address Size |
1K |
|
Jumbo
Frame |
12KB,
only supports in 1000M mode |
|
LED
Indicators |
Per Unit: Power
Speed (Per Port)
Solid Green: 1000Mbps
Solid Amber: 100Mbps
Off: 10Mbps
Link/ACT (Per Port)
Solid Green: Link
Blinking Green: Activity |
|
Power
Adapter |
DC 5V
/ 1.2A |
|
Power
Consumption |
3.25
watts maximum |
|
Dimension |
171 x
98 x 28mm (L x W x H) |
|
Temperature |
Operating: 0 ~ 40°C (32 ~ 104°F)
Storage: -10 ~ 70°C (-14 ~ 158°F) |
|
Humidity |
5% ~
95% non condensing |
|
Certifications |
FCC,
CE, VCCI-B, CUL, LVD |
|
Warranty |
1-year
limited warranty |
* Power savings
may vary depending on products used. Maximum power saving up
to 46% when compared with Airlink101® AGIGA8SW.
* Actual
throughput will vary. Specifications are subject to change
without notice. All products and trademarks are the property
of their respective owners. Photos of product may not
reflect actual content. Copyright ©2011 Airlink101®
|
