Wireless Range Extender (Signal Repeater)
High Speed 2.4GHz Range Expander 802.11g up to 54Mbps
D-Link (Dlink) Air-Plus (AirPlus) Xtreme-G (Extreme-G) DWL-G800AP

Features:
> Up to 54Mbps (*)
> 2 Operation Modes: Access Point & Repeater (**)
> 802.11b Compatible when used as an Access Point
> Enhanced Security with WPA and WEP Encryption

Product Description:

D-Link, the industry pioneer in wireless networking introduces the latest product in the AirPlus Xtreme G™ family designed to enhance transfer rates and to extend the range of your wireless network – the DWL-G800AP Wireless Range Extender. Using the 802.11g standard, D-Link's DWL-G800AP offers data transfer speeds with a maximum wireless signal rate of up to 54Mbps(*).

The D-Link DWL-G800AP is a high-speed 802.11g Wireless Range Extender capable of operating in two modes: Wireless Access Point or Wireless Repeater. In either operation mode, the DWL-G800AP Wireless Range Extender offers the convenience of eliminating cable wires while providing the same reliable connection throughout your network. When used as an access point, the DWL-G800AP is backwards compatible with all 802.11b devices. When used as a repeater, the same strong signal bandwidth of 802.11g devices is repeated increasing the range of wireless coverage.

The DWL-G800AP Wireless Range Extender also features 128-bit WEP encryption and Wi-Fi Protected Access (WPA), and 802.1x user authentication to enhance the levels of data protection on your existing network. With the provided level of security, unauthorized individuals will not be able to access your network unless granted permission.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

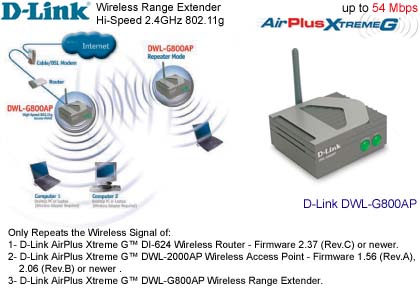

** Only Repeats the Wireless Signal of:
1- D-Link AirPlus Xtreme G™ DI-624 Wireless Router - Firmware 2.37 (Rev.C) or newer.
2- D-Link AirPlus Xtreme G™ DWL-2000AP Wireless Access Point - Firmware 1.56 (Rev.A), 2.06 (Rev.B) or newer .
3- D-Link AirPlus Xtreme G™ DWL-G800AP Wireless Range Extender.

Specification:

Standards
> IEEE 802.11g
> IEEE 802.11b
> IEEE 802.3
> IEEE 802.3u

Device Management
> Web-based – Internet Explorer v.6 or later; Netscape Navigator v.6 or later; or other Java- enabled browsers.

Wireless Signal Rates1 With Automatic Fallback
> 54Mbps
> 48Mbps
> 36Mbps
> 24Mbps
> 18Mbps
> 12Mbps
> 11Mbps
> 9Mbps
> 6Mbps
> 5.5Mbps
> 2Mbps
> 1Mbps

Security
> 64/128-bit WEP
> WPA —Wi-Fi Protected Access (64/128-bit WEP with TKIP, MIC, IV

Expansion, Shared Key Authentication)
> WPA-PSK
> 802.1x

Media Access Control
> CSMA/CA with ACK

Wireless Frequency Range
> 2.4GHz to 2.4835GHz

Receiver Sensitivity
> 54Mbps OFDM, 10% PER,-68dBm)
> 48Mbps OFDM, 10% PER,-68dBm)
> 36Mbps OFDM, 10% PER,-75dBm)
> 24Mbps OFDM, 10% PER,-79dBm)
> 18Mbps OFDM, 10% PER,-82dBm)
> 12Mbps OFDM, 10% PER,-84dBm)
> 11Mbps CCK, 8% PER,-82dBm)
> 9Mbps OFDM, 10% PER,-87dBm)
> 6Mbps OFDM, 10% PER,-88dBm)
> 5.5Mbps CCK, 8% PER,-85dBm)
> 2Mbps QPSK, 8% PER,-86dBm)
> 1Mbps BPSK, 8% PER,-89dBm)

Wireless Operating Range2
> Indoors: Up to 328 ft (100 meters)
> Outdoors: Up to 1312 ft (400 meters)

Modulation Technology
> Orthogonal Frequency Division

Multiplexing (OFDM)
> Complementary Code Keying (CCK)

Wireless Transmit Power
> 15dBm (32mW) ± 2dB

External Antenna Type
> 1.0dBi gain with reverse SMA connector

Temperature
> Operating: 32°F to 149°F (0°C to 55°C)
> Storing: 4°F to 167°F (-20°C to 75°C)

Humidity
> 95% maximum (non-condensing)

Power Input
> Ext. Power Supply DC 5V, 2.0A

Safety & Emissions
> FCC
> UL

Dimensions
> L = 5.5 inches (140mm)
> W = 4.5 inches (114mm)
> H = 1 inches (25.4mm)

Weight
> 0.44 lbs (200g)

Warranty
> D-Link manufacturer's limited 3-year warranty, subject to change without prior notice.

1 Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate.

2 Environmental conditions may adversely affect wireless signal range.
