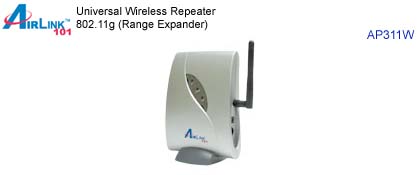

Wireless Repeater 802.11g (Signal Extender)
Range Expander AirLink 101 AP311W

* Expand your current wireless coverage
* Remove dead spots and enhance wireless signals
* Easy to use setup wizard

The AP311W Universal Wireless Repeater will help increase the wireless coverage of your network. With the easy to set-up wizard, the universal repeater will be able to extend your wireless network in minutes. Simple to use, and easy to setup!

Specifications:
Frequency Band 2.400 - 2.4835GHz (subject to local regulations)
Standards IEEE 802.11b/802.11g
Management Log-in protection, Web-based firmware upgrade
Transmitted Power 11g: 0-13dBm +/- 1dBm @ normal temp. range, 11b: 0-16dBm +/- 1dBm @ normal temp. range
Security 64, 128-bit WEP Encryption, IEEE 802.1i - WPA and TKIP, Password protection
Power Output AC: 5V 1A
Safety Approvals FCC, CE

* Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.

Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.

Copyright ©2006 Airlink101™

System Requirements
* 802.11b/g wireless network
* PC with 802.11b/g wireless adapter installed

Package Contents
* Wireless Universal Wireless Repeater
* Quick Installation Guide
* Utility CD
* Power Adapter
