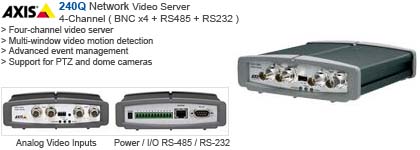

 Features:
  • Four-channel video server
  • Multi-window video motion detection
  • Advanced event management
  • Support for PTZ and dome cameras

Dimensions:
42 x 140 x 155 mm (1.7” x 5.5” x 6.1”)
540 g (1.2 pounds) excluding power supply

AXIS 240Q: System overview:

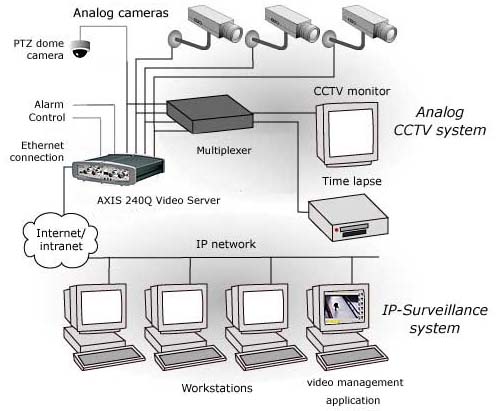

The AXIS 240Q Video Server utilizes analog signals, which makes it ideal for networking existing analog systems.  System integrators and installers can help customers with existing installations cross over to IP-based surveillance systems.
The AXIS 241Q provides four analog video inputs and transmits digital video from all four channels simultaneously via an Ethernet connection. For event handling, four freely configurable alarm inputs are provided.

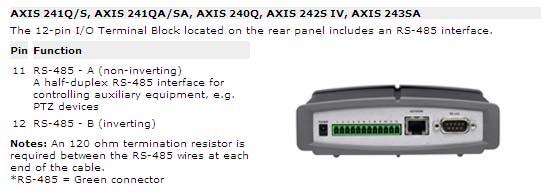

RS485 Pinout:
Main Features:


  • Manufacturer: Axis Communications
  • Manufacturer Part Number: 0232-004
  • Manufacturer Website Address: www.axis.com
  • Product Model: 240Q
  • Product Name: 240Q Video Server
  • Marketing Information: The AXIS 240Q Video Server is designed for surveillance applications. It provides easy integration with traditional analog systems, ensuring a smooth migration toward an IP solution.
  • Product Type: Video Server
  • Video Input: 4 x BNC - Composite Video
  • Video Signals: NTSC, PAL
  • Video Formats: M-JPEG
  • Processor: ETRAX 100LX
  • Memory: 32MB RAM, 8MB Flash Memory
  • Network: 10/100Base-T Fast Ethernet
  • Ports: RJ-45 Network, DB-9 RS-232
  • Protocols: HTTPS, HTTP, TCP/IP, FTP, SNMP, SSL, UDP, IGMP, SMTP, DHCP, UPnP, ARP, DNS, DynDNS, SOCKS
  • Management: Alarm and Event Management:Events triggered by built-in motion detection, External inputs or according to a schedule, Image upload over FTP, email and HTTP, Notification over TCP, email, HTTP and external outputs
  • Dimensions: 1.65" Height x 5.51" Width x 6.1" Depth
  • Weight: 1.2 lb - Excluding power supply
  • Additional Information: Pan/Tilt/Zoom: A wide range of PTZ and dome cameras is supported
  • Package Contents: 240Q Video Server, Power supply 9V DC, Mounting brackets, Connector kit, Installation Guide, CD with installation tool, Software and User's Manual

Specifications:

General Information
Manufacturer:
Axis Communications
Manufacturer Part Number:
0232-004
Manufacturer Website Address:
www.axis.com
Brand Name:
Axis
Product Model:
240Q
Product Name:
240Q Video Server
Marketing Information:
The AXIS 240Q Video Server is designed for surveillance applications. It provides easy integration with traditional analog systems, ensuring a smooth migration toward an IP solution.
Product Type:
Video Server
Technical Information
Video Input:
4 x BNC - Composite Video
Video Signals:
  • NTSC
  • PAL
    		•
    Frame Rate:
  • 6 fps @ 704 x 480
  • 5 fps @ 768 x 576
    • Video Formats:
    		M-JPEG
    Alarm Features:
  • 4 freely configurable alarm inputs and 4 outputs3 MB pre/post alarm memory per channel
    • Processor & Chipset
    Processor:
    		ETRAX 100LX
    Memory
    Memory:
  • 32MB RAM
  • 8MB Flash Memory
    		•
    Network & Communication
    Network:
    		10/100Base-T Fast Ethernet
    Interfaces/Ports
    Ports:
  • RJ-45 Network
  • DB-9 RS-232
    		•
    Management & Protocols
    Protocols:
  • HTTPS
  • HTTP
  • TCP/IP
  • FTP
  • SNMP
  • SSL
  • UDP
  • IGMP
  • SMTP
  • DHCP
  • UPnP
  • ARP
  • DNS
  • DynDNS
  • SOCKS
    		•
    Management:
    		Alarm and Event Management:
  • Events triggered by built-in motion detection
  • External inputs or according to a schedule
  • Image upload over FTP, email and HTTP
  • Notification over TCP, email, HTTP and external outputs
    		•
    Security Features:
  • Multiple user access levels
  • Password protection
  • IP address filtering
  • HTTPS encryption
    		•
    Environmental Conditions
    Temperature:
    		5 °C (41.0 °F) to 50 °C (122.0 °F) Operating
    Humidity:
    		20 to 80% Non-condensing Relative Humidity Operating
    Physical Characteristics
    Dimensions:
    		1.65" Height x 5.51" Width x 6.1" Depth
    Weight:
    		1.2 lb - Excluding power supply
    Shipping Information
    Shipping Dimensions :
    		5.0" Height x 8.0" Width x 11.0" Depth
    Case Pack Qty :
    		1
    Shipping Weight :
    		2.44 lb
    Miscellaneous
    Package Contents:
  • 240Q Video Server
  • Power supply 9V DC
  • Mounting brackets
  • Connector kit
  • Installation Guide
  • CD with installation tool
  • Software and User's Manual
    • Operating System:
    		Embedded: Linux 2.4
    Additional Information:
    		Pan/Tilt/Zoom: A wide range of PTZ and dome cameras is supported
    System Requirements:
    		Processor:
  • Pentium III 500MHz, Eequivalent AMD or higher

    Operating System:

  • Windows XP
  • Windows 2000
  • Windows ME
  • Windows 98
  • NT4.0

    Memory:

  • 128MB RAM

    Others:

  • AGP graphic card, Direct Draw, 32 MB RAM
  • DirectX 9.0 or later
  • Internet Explorer 5.x or later
    • Certifications & Standards:
  • EMC: CE compliant according to: EN550022/1998 Class B
  • EN550024/1998
  • EN61000-3-2: 2000
  • EN61000-3-3:2000
  • FCC Subpart B Class A
  • FCC Subpart B Class B
  • VCCI Class B
  • C-tick AS/NZS 3548
  • EN60950
  • UL
  • CSA (power supply only)
    		•
