Serial Ethernet
Adapter |
Serial

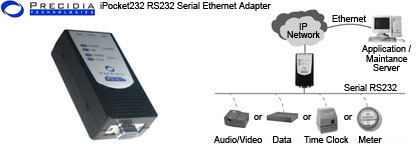

Ethernet Device Server RS232 Ethernet IP Adapter Precidia iPocket232 Low Cost Serial/Ethernet Connectivity in a Compact Design > Network any RS232 device > Plug and play installation > Access serial device from network > Eliminate dedicated PCs and modems > ROHS and WEEE compliant > NetVu™facilitates deployment, monitoring and support > Wall or DIN rail mountable (with adapter) Overview Serial networking adapters facilitate M2M (machine-to-machine) communication and extend the functional life of legacy equipment. Used in more than 85 countries around the globe, the iPocket232 is a single port RS232 to ethernet adapter. Precidia's lowest cost, most compact adapter, the iPocket232 is chosen by resellers and end users for its ease of use, simple installation and enhanced manageability. Available with NetVu™, Precidia's management server, the iPocket232 can be easily accessed from any location on the user's network, eliminating dedicated PCs and facilitating data sharing. Applications Include: The iPocket232 is used in hundreds of applications for organizations ranging from small businesses to Fortune 500 enterprises. > Integrating legacy Property Management Systems (PMS) with IP PBX > Connecting serial-based nurse call systems to a hospital's LAN > Connecting SCADA systems to LAN/WANs > Acting as a low cost network monitoring agent with NetVu > Networking surveillance cameras in retail stores Benefits > Delivers access to serial device data in real-time from ethernet network > Integrates seamlessly with existing systems and applications > Plug and play installation > Available with NetVu™for enhanced monitoring and management > Extends the functional life of existing equipment > Compact design ideal for any environment > Eliminates requirement for dedicated PCs and modems > Installs easily, with remote or local configuration options Features > Single RS-232 serial port supporting up to 115200 bps > Transparent to existing serial connections > Enhanced device and network management available with NetVu > Single RS-232 serial port supporting up to 115200 bps > Wall or DIN Rail Mountable (with adapter) > Compatible with TCP/IP networks and routers for Internet or Intranet applications > Built-in web server, supporting dynamic and static web pages > Supports hardware and software control > Powers 5 or 9V serial device without additional adapter > Multiple serial device management from a single PC over Ethernet > Local and remote configuration and software upgrade capability > Automatic switchover to backup server on failure > Capable of automatic connection and connection recovery > Remote Com Port Control allows user to remotely manage the device's serial port > User downloadable web page > Extended SNMP traps and alerts > DHCP support for enhanced network management > Supports IPSec (manually keyed) > Auto-identity header for units with dynamic IP > Visual status LEDs > ROHS compliant model available (PE000528 EUR) Specifications > Serial Interface: RS-232 DCE Interface > Serial Connector: DB-9 Female > Serial Speed: 300 - 38400 bps (bursts to 115.2 kbps) > Ethernet Interface: Ethernet II, IEEE 802.3, 10 Base-T > Ethernet Connector: RJ-45 > Ethernet Speed: 10 Mbps > Status LEDs Indicators: Power, Ethernet (link, collision, transmit) COM (serial) - transmit and status > Protocols Supported: ARP, ICMP, UDP, TCP, IP > Network Services: HTTP, Telnet, TFTP, Com Port Control (RFC2217), SNMPv2c, DHCP > Power Requirements: 9V DC external (can provide up to 350mA at 9V to end device) > Operating Temperature: 0-50°C / 32-125°F > Dimensions: (w x h x l): 44 (w) x 24 (h) x 84 mm (l); 1.75 (w) x 0.95 (h) x 3.33 in. (l) > Weight (including power supply): 285 g (9.84 oz) > Regulatory Approvals: FCC Part 15, RoHS, UL |
