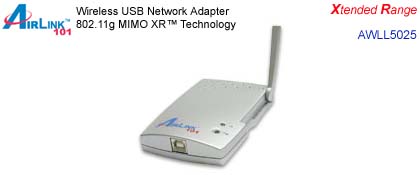

Wireless USB Network Adapter ( Laptop / Notebook Networking Adapter )
AirLink 101 AWLL5025 802.11g MIMO XR™ ( Xtended Range ) Technology

* USB XR™ architecture technology
* Advanced Packet-OVERDRIVE™ technology increases data transfer rate for faster internet access and internet gaming experience
* Eliminates dead spots around the corners

Extend the range of your current Airlink101™ or other wireless network. The new USB XR™ 802.11g USB Adapter features improved signal strength and range using the MIMO XR™ architecture. The AWLL5025 supports up to 600% higher throughput coverage than standard 11g devices, while eliminating dead spots and improving vertical signal transmission for multi-story buildings.

Works best with Airlink101™ MIMO XR™ routers (AR525W)

Specifications:

Standards IEEE 802.11g/b
Frequency Band 2.4 GHz
Protocol Support TCP/IP, IPX, NDIS
Antenna Type Diversity antennas
Interface USB 2.0
OS Compatibility Windows 2000/XP
Transmitted Power 11g: Max. +13 dBm @ normal temp range, 11b: Max. +17 dBm @ normal temp range
Security 64, 128-bit WEP encryption, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
Dimensions 94 x 60 x 16 mm
Safety Approvals FCC, CE

Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. MIMO XR™ is a registered trademark of Ralink Technology Corporation.

Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.

Copyright ©2006 Airlink101™

System Requirements
* 300 Mhz processor or better
* Windows 2000 / XP
* 64MB RAM
* Available USB port

Package Contents
* MIMO XR™ 802.11g Wireless USB Adapter
* Quick Installation Guide
* Utility CD
