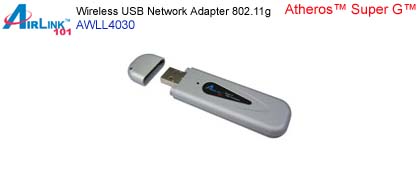

Wireless USB Network Adapter (
USB Networking Adapter )
Atheros™ Super G™ technology up to 108Mbps
AirLink 101 AWLL4030
* IEEE 802.11g/b and Super G™
supporting up to 108Mbps data rates
* Supports use of WPA and 802.1x for extra security
* Up to 10x faster than 802.11b with new Super G™ technology
Connect your Ethernet-ready desktop to your current wireless network.
Compatible with products using Atheros™ Super G™ technology for 108Mbps.
Also backward compatible with 802.11b.
Specifications:
Standards Wireless: IEEE 802.11g/b, Atheros™ Super G™
Bus Type USB 2.0 Type A
Frequency Band 2.400 - 2.4835GHz (Industrial Scientific Medical
Band)
Modulation 111g: OFDM with BPSK, QPSK, 16QAM, 64QAM, 11b: BPSK,
QPSK, CCK
Data Rate 108Mbps* (turbo mode enabled),
54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback
Securities WEP, 802.11i, WPA
Antenna Type Internal Antenna
Supported OS Windows 98SE/2000/ME/XP
LED Link/Activity
Receiving Sensitivity -72dBm@54Mbps, -85dBm@11Mbps, -93dBm@1Mbps
Dimensions 87 x 27 x 9 mm (L x W x H)
Operating Temperature 32 - 122°F (0 - 50°C)
Operating Humidity 10 - 95% non-condensing
Certification FCC, CE
* Super G™ technology (108Mbps) can only be obtained when using products
with Atheron Super G™ chipset.
* Theoretical maximum wireless signal rate based on Atheros™ Super G™
and IEEE standard 802.11g specifications. Actual data throughput will
vary. Network conditions and environmental factors, including volume of
network traffic, building materials and construction, mix of wireless
products used, radio frequency interference (e.g., cordless telephones
and microwaves) as well as network overhead lower actual data throughput
rate.
Specifications are subject to
change without notice. All products and trademarks are the property of
their respective owners.
Copyright ©2006 Airlink101™
System Requirements
* Desktop or notebook PC
* Windows 98SE/2000/ME/XP
* Available USB port
Package Contents
* Super G™ USB 2.0 Adapter
* USB 2.0 Extension Cable
* Quick Installation Guide
* Utility and Driver CD |
