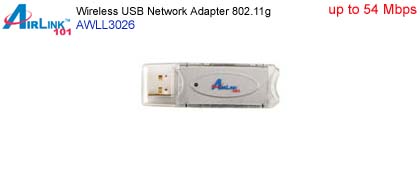

Wireless USB Network Adapter ( USB Networking Adapter )
802.11g up to 54Mbps AirLink 101 AWLL3026

* IEEE 802.11g/b supporting up to 11/54 Mbps data rates
* Supports use of WPA and WEP for extra security
* Up to 5x faster than 802.11b
* Compact ultra-slim design

Add wireless capabilities to your current wireless-capable device. The AWLL3026 features an extra-thin compact design and compatibility with USB 2.0 ports. Includes wireless encryption data with 64/128/152-bit WEP. Also backward compatible with 802.11b.

Specifications:
Interface USB 2.0 Standard, USB 1.1 Compliant
Data Transfer Rate IEEE 802.11b: 1/2/5.5/11 Mbps (auto-sensing), IEEE 802.11g: 6/9/12/18/24/36/48/54 Mbps (auto-sensing)
Access Method Infrastructure Mode, Ad-Hoc Mode (802.11 Ad-Hoc), Roaming
Media Access Protocol CSMA/CA
Operating Channels 1-11 (US, Canada), 1-13 (availability depends on local regulations
Transmit Power Settings 16dBm (OFDM) / 18dBm (CCK)
Security WEP 64/128/256bit, TKIP, WPA, 802.11i, compliant AES encryption
LED Indicators Power/Link
Operating Temperature 32°F - 131°F (0°C - 55°C)
Operating Humidity 10 - 80% non-condensing
Dimensions 69.8 x 22.5 x 8.6 mm (L x W x H)
Weight 10g
Certifications FCC part 15b, CE

* Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.

Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.

Copyright ©2006 Airlink101™

System Requirements
* Available USB port
* Windows 98SE/2000/ME/XP
* 300MHz processor or better
* 32MB RAM

Package Contents
* 802.11g USB 2.0 Adapter
* Quick Installation Guide
* Utility and Driver CD
