Wireless PCI Network Card ( PCI Networking Adapter )
D-Link (Dlink) Air-Plus (AirPlus) up to 108Mbps

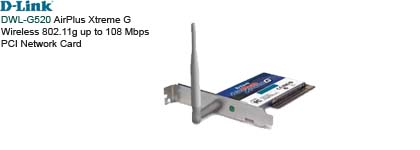

XtremeG (Xtreme-G, Extreme-G) DWL-G520
WLS-PCI-DL-G108

Product Features:
* Up to 108Mbps (*)
* Works with 802.11b Devices
* Great for Video Streaming
* 802.11g, 802.11b Compatible
* Increased Security with 802.1X and WPA

Product Description:

D-Link®, the industry pioneer in wireless networking, introduces another performance breakthrough in wireless connectivity—the D-Link AirPlus XtremeG™ series of high-speed devices.

The D-Link AirPlus XtremeG DWL-G520 PCI Adapter is a wireless PCI adapter featuring the very latest in advanced wireless silicon chip technology to deliver incredibly fast data transfer in the 2.4GHz frequency. The DWL-G520 also works with 802.11b standard wireless devices and when used with other D-Link AirPlus XtremeG products delivers throughput speeds capable of handling heavy data payloads.

With the enhancement of D-Link 108G, the DWL-G520 can achieve wireless speeds up to 15x faster than standard 802.11b in a pure D-Link 108G environment through the use of new wireless techniques such as Packet Bursting, FastFrame, Compression & Encryption, from your Desktop PC and Turbo mode. This provides a bandwidth large enough to handle video/audio streaming and Video on Demand (VoD) applications.

The D-Link AirPlus XtremeG DWL-G520 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity profiles for those networks most often accessed.

The DWL-G520 is a powerful 32-bit PCI adapter that installs quickly and easily into desktop PCs and when used with other D-Link AirPlus XtremeG products automatically connects to the network. Like all D-Link wireless adapters, the DWL-G520 can be used in ad-hoc mode to connect directly with other 2.4GHz wireless computers for peer-to-peer file sharing or in infrastructure mode to connect with a wireless access point or router for access to the Internet in your office or home network.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

Specifications:

Standards
* IEEE 802.11
* IEEE 802.11b
* IEEE 802.11g

Bus Type
* PCI 2.2

Wireless Signal RateS (*)
With Automatic Fallback
* D-Link 108G: 108Mbps
* 54 Mbps
*48 Mbps
* 36 Mbps
* 24 Mbps
* 18 Mbps
* 12 Mbps
* 11 Mbps
* 9 Mbps
* 6 Mbps
* 5.5 Mbps
* 2 Mbps
* 1 Mbps

Security
* 64-, 128-WEP
* 802.1x
* WPA—Wi-Fi Protected Access (64/128-bit WEP with TKIP, MIC, IV Expansion, Shared Key Authentication)

Media Access Control
* CSMA/CA with ACK

* Frequency Range
* 2.4 GHz to 2.462 GHz

Wireless Signal Range (*)
* Indoors: Up to 328 feet (100 meters)
* Outdoors: Up to 1,312 feet (400 meters)

Power Consumption
* PowerSave mode = 28 mA
* Standby mode = 4.66 mA
* Transmit mode = 248 mA

Modulation Technology
* Orthogonal Frequency Division Multiplexing (OFDM)
* Complementary Code Keying (CCK)

Receiver Sensitivity (*)
* 54 Mbps OFDM, 10% PER, -68 dBm)
* 48 Mbps OFDM, 10% PER, -68 dBm)
* 36 Mbps OFDM, 10% PER, -75 dBm)
* 24 Mbps OFDM, 10% PER, -79 dBm)
* 18 Mbps OFDM, 10% PER, -82 dBm)
* 12 Mbps OFDM, 10% PER, -84 dBm)
* 11 Mbps CCK, 8% PER, -82 dBm)
* 9 Mbps OFDM, 10% PER, -87 dBm)
* 6 Mbps OFDM, 10% PER, -88 dBm)
* 5.5 Mbps CCK, 8% PER, -85 dBm)
* 2 Mbps QPSK, 8% PER, -86 dBm)
* 1 Mbps BPSK, 8% PER, -89 dBm)

Wireless Transmitter Power
* 15 dBm ± 2dB

Internal Antenna Type
* Dipole with detachable reverse SMA connector

Operating Temperature
* 32°F to 131°F ( 0°C to 55°C)

Humidity
* 95% maximum (non-condensing)

Dimensions
* L = 4.64 (114.3mm)
* W = 2.13 (54mm)
* H = 0.34 inches (8.7mm)

Weight
* 0.12 lb (55g)

Certifications
* FCC part 15b

Warranty
* D-Link manufacturer 3-year limited warranty, subject to change without prior notice.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
