Wireless PCI Network Card ( PCI Networking Adapter )
D-Link Air-Plus G up to 54Mbps

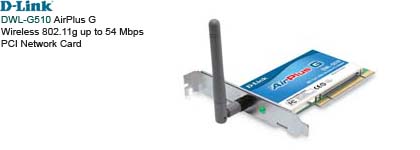

DLink AirPlus G DWL-G510
WLS-PCI-DL-G054

Product Features:
> Up to 54Mbps (*)
> 802.11g Standard, 802.11b Compatible
> Great for Video Streaming
> Increased Security with 802.1x and WPA (**)

Product Description:

D-Link, the industry pioneer in wireless networking, introduces another performance breakthrough in wireless connectivity—the D-Link AirPlus™ G series of high-speed devices.

The D-Link AirPlus G DWL-G510 PCI Adapter is a Wireless PCI Adapter featuring the very latest in advanced wireless silicon chip technology to deliver a maximum wireless signal rate of up to 54Mbps* in the 2.4GHz frequency. The DWL-G510 also works with 802.11b standard wireless devices and when used with other D-Link AirPlus G products delivers throughput speeds capable of handling heavy data payloads.

The D-Link AirPlus G DWL-G510 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity profiles for those networks most often accessed.

The DWL-G510 is a powerful 32-bit PCI adapter that installs quickly and easily into desktop PCs and when used with other D-Link AirPlus G products automatically connects to the network. Like all D-Link wireless adapters, the DWL-G510 can be used in Ad-Hoc mode to connect directly with other 2.4GHz wireless computers for peer-to-peer file sharing or in Infrastructure mode to connect with a wireless access point or wireless router for access to the Internet in your office or home network. The DWL-G510 is an ideal solution enabling wireless networking capabilities on desktops PCs for the home or office.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

** WPA and 802.1x require use of Windows® XP Zero Configuration Utility.

Specification:

Standards
> IEEE 802.11b
> IEEE 802.11g

Interface
> 32-bit PCI

Data Rates With Automatic Fallback
> 54Mbps > 48Mbps
> 36Mbps > 24Mbps
> 18Mbps > 12Mbps
> 11Mbps > 9Mbps
> 6Mbps > 5.5Mbps
> 2Mbps > 1Mbps

Security
> 64-, 128-WEP
> 802.1x
> WPA —Wi-Fi Protected Access (64-, 128-WEP with TKIP, MIC, IV Expansion, Shared Key Authentication)

Media Access Control
> CSMA/CA with ACK

Frequency Range
> 2.4GHz to 2.462GHz

Range
> Indoors: Up to 328 feet (100 meters)
> Outdoors: Up to 1,312 feet (400 meters)

Power Consumption
> PowerSave mode = 28mA
> Standby mode = 4.66mA
> Transmit mode = 248mA

Modulation Technology
> Orthogonal Frequency Division

Multiplexing (OFDM)
> Complementary Code Keying (CCK)

Receiver Sensitivity
> 54Mbps OFDM, 10% PER,-68dBm)
> 48Mbps OFDM, 10% PER,-68dBm)
> 36Mbps OFDM, 10% PER,-75dBm)
> 24Mbps OFDM, 10% PER,-79dBm)
> 18Mbps OFDM, 10% PER,-82dBm)
> 12Mbps OFDM, 10% PER,-84dBm)
> 11Mbps CCK, 8% PER,-82dBm)
> 9Mbps OFDM, 10% PER,-87dBm)
> 6Mbps OFDM, 10% PER,-88dBm)
> 5.5Mbps CCK, 8% PER,-85dBm)
> 2Mbps QPSK, 8% PER,-86dBm)
> 1Mbps BPSK, 8% PER,-89dBm)

Transmitter Output Power
> 15dBm ± 2dB

Internal Antenna Type
> Dipole with detachable reverse SMA connector

Operating Temperature
> 32°F to 149°F ( 0°C to 55°C)

Humidity
> 95% maximum (non-condensing)

Dimensions
> L = 4.64 (114.3mm)
> W = 2.13 (54mm)
> H = 0.34 inches (8.7mm)

Weight
> 0.12 lb (55g)

Certifications
> FCC part 15b

Warranty
> D-Link manufacturer's limited 3-year warranty, subject to change without prior notice.

* Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data
throughput rate.

* Environmental factors may adversely affect wireless signal range.
