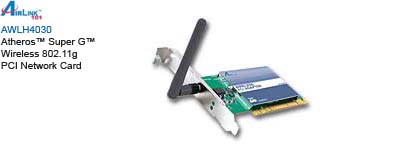

Wireless PCI Network Card (
PCI Networking Adapter )
Atheros™ Super G™ technology up to
108Mbps AirLink 101 AWLH4030
WLS-PCI-AR-G108
* IEEE 802.11g/b and Super G™
supporting up to 108Mbps data rates
* Supports use of WPA and 802.1x for extra security
* Up to 10x faster than 802.11b with new Super G™ technology
Connect your Ethernet-ready desktop to your current wireless network.
Compatible with products using Atheros™ Super G™ technology for 108Mbps.
Also backward compatible with 802.11b.
Specifications:
Standards Wireless: IEEE 802.11g/b, Atheros™ Super G™
Data Rate Atheros™ Super G™: up to 108 Mbps*, 802.11g: up to
54Mbps*, 802.11b: up to 11Mbps*
Chipset Atheros™
Transmit Power 18dBm @ 11Mbps, 14~15dBm @ 54/108Mbps
Antenna Type Detachable reverse SMA omni-directional dipole
antenna with 2dBi gain
Functions Supports ad-hoc and infrastructure modes.
Security WEP 64/128/152-bit encryption, WPA-PSK and WPA-EAP,
802.1x (EAP-MD5 and EAP-TLS, EAP-TTLS and EAP-PEAP
Bus Type PCI local bus 2.2, PCI 32-bit interface
Dimensions 6.6 x 4.2 inch (L x W)
Certifications FCC and CE
* Super G™ technology (108Mbps) can only be obtained when using products
with Atheron Super G™ chipset.
* Theoretical maximum wireless signal rate based on Atheros™ Super G™
and IEEE standard 802.11g specifications. Actual data throughput will
vary. Network conditions and environmental factors, including volume of
network traffic, building materials and construction, mix of wireless
products used, radio frequency interference (e.g., cordless telephones
and microwaves) as well as network overhead lower actual data throughput
rate.
Specifications are subject to
change without notice. All products and trademarks are the property of
their respective owners.
Copyright ©2006 Airlink101™
System Requirements
Windows® 98SE/ME/2000/XP system with at least 300MHz processor, 32MB of
memory, and available PCI slot.
Package Contents
* PCI Adapter device
* Quick Installation Guide
* CD/User Manual |
