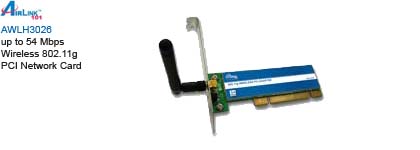

Wireless PCI Network Card (
PCI Networking Adapter )
802.11g up to
54Mbps AirLink 101 AWLH3026
WLS-PCI-AR-G054-6
* IEEE 802.11b/g supporting up
to 11/54Mbps data rates
* Supports use of WPA and WEP for extra security
* Up to 5x faster than 802.11b
Connect your Ethernet-ready desktop to your current wireless network.
Backward compatible with 802.11b.
Specifications:
Standards PCI bus power management interface, Specification 1.0
compliant, ACPI 1.0 compliant, PCI Rev. 2.2 compliant
Host Interface PCI 32bit
Data Rate 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps, 802.11b:
11, 5.5, 2, 1 Mbps
Antenna +2dBi detachable antenna, reverse SMA connector
Frequency Range 2.4GHz to 2.4835GHz ISM bandwidth
Selectable Channels USA, Canada and Taiwan - 11; Japan
- 14, Most European Countries - 13; France - 4
Security WEP 64/128-bit, TKIP, WPA, WPA2, 802.11i
Modulation 802.11g: OFDM, 802.11b: CCK, DQPSK, and DBPSK
Media Access Protocol CSMA/CA with ACK
Operating Voltage Power: 5V +/- 5%, Core Voltage: 3.3V & 1.8V
Temperature Range Operation: 0-55 degrees C, Storage: -20-65
degrees C
* Theoretical maximum wireless signal rate based on IEEE standard
802.11g specifications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network
traffic, building materials and construction, mix of wireless products
used, radio frequency interference (e.g., cordless telephones and
microwaves) as well as network overhead lower actual data throughput
rate.
Specifications are subject to
change without notice. All products and trademarks are the property of
their respective owners.
Copyright ©2006 Airlink101™
System Requirements
Windows® 98SE/ME/2000/XP desktop with 300 MHz processor or more, 32MB of
memory, and available PCI slot.
Package Contents
* 802.11g Wireless PCI Adapter
* Driver CD
* Quick Installation Guide |
