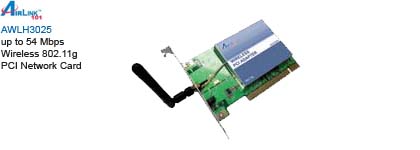

Wireless PCI Network Card ( PCI Networking Adapter )
802.11g up to 54Mbps AirLink 101 AWLH3025
WLS-PCI-AR-G054-5

* IEEE 802.11b/g supporting up to 11/54Mbps data rates
* Supports use of WPA and WEP for extra security
* Up to 5x faster than 802.11b

Connect your Ethernet-ready desktop to your current wireless network.
Backward compatible with 802.11b.

Specifications:
Standards IEEE 802.11g standard, Backward compatible to IEEE 802.11b
Host Interface PCI 2.2
Antenna Detachable dipole antenna
Frequency Range 2.412 - 2.4835GHz
Preamble 11b: Both Short and Long preamble, 11g: Long preamble only
Security Hardware-based 64/128/256-bit encryption/decryption, Wired-Equivalent Privacy (WEP) Keys, WPA Supported
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
Power Requirement Operation Voltage: 3.3V, TX consumption mode: 630mA, RX consumption mode: 630 mA
Physical Specifications Weight: 92g
Dimensions: 119.91 x 80 mm (L x W)
Supported Operating Systems Windows 98SE/ME/2000/XP

* Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.

Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.

Copyright ©2006 Airlink101™

System Requirements
Windows® 98SE/ME/2000/XP desktop with 300 MHz processor or more, 32MB of memory, and available 32-bit PCI slot.

Package Contents
* PCI Adapter device
* Quick Installation Guide
* CD Driver and User Manual
